DJI-C7000

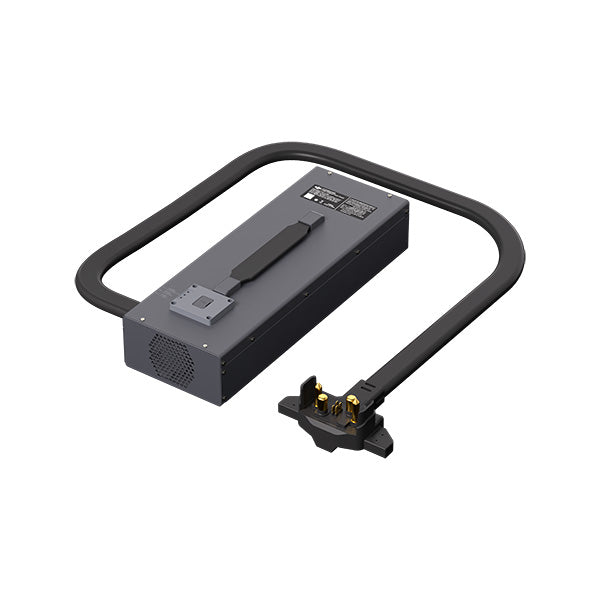

C7000 Intelligent Power Supply (EMC)
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| compatible battery | DB1050 / DB1580 / DB2160 Intelligent Flight Battery |
| input voltage | Single-phase 220 - 240 V ; Three-phase 380 - 480 V |
| model [single line text feild] | CSX711-7000 |
| output power | Single-phase 40 A ; Three-phase, 140 A |
| output voltage | 50 - 62 V |
| protection functions | Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions |
| weight | 8.5 kg |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| charging time | 8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95% charge) |
| output current | 7000 W (three-phase 380 V input) ; 2000 W (single-phase 220 V input) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| operating temperature | -20° to 40° C (-4° to 104° F) |
