Overview

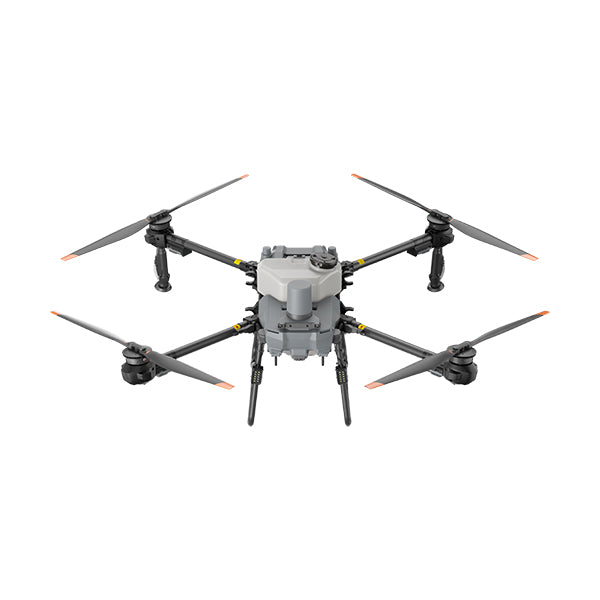

DJI AGRAS T25P
This product includes the airframe only. For a complete setup, please select the package.
AIRCRAFT
| GENERAL SPECS | |
|---|---|
| Product Revision | A |
| hovering accuracy range with GNSS | RTK enabled:Horizontal: ±10 cm, Vertical: ±10 cm ; RTK disabled:Horizontal: ±60 cm, Vertical: ±30 cm |
| max configurable flight radius | 2 km |
| max takeoff weight spraying | 53 kg |
| max takeoff weight spreading | 60 kg |
| max wheelbase diagonals | 1970 mm |
| max wind speed resistance | <6 m/s |
| motor KV | 59 rpm/V |
| motor stator length | 100 mm |
| motor stator width | 28 mm |
| propeller dimensions | 1270 mm |
| propeller material | Nylon carbon fiber |
| propeller quantity | 4 pairs |
| PHYSICAL SPECS | |
| weight without battery | 26 kg |
| weight with battery | 33 kg (spraying with battery) |
| AIRCRAFT SENSING | |
| AIRCRAFT SENSING distance | 2.5m (Distance between the drone and obstacle after braking and stable hovering) |
| FOV front radar | Horizontal 360°, Vertical ±45°, Upper ±45° (cone) |
| FOV rear radar | Vertical 360°, Horizontal ±45° |
| FOV tri-vission system | Horizontal 90°, Vertical 180° |
| measurement range | ≤ 60 m |
| obstacle avoidance height | ≥ 1.5 m |
| operating environment requirements | Adequate light and discernible surroundings |
| operating temperature | 0 °C to 40 °C |
| radar EIRP | <20 dBm (NCC/MIC/KC/CE/FCC) |
| safe bypass speed | ≤ 10 m/s |
REMOTE CONTROLLER
| REMOTE CONTROLLER SPECS | |
|---|---|
| model | TKPL 2 |
