Overview

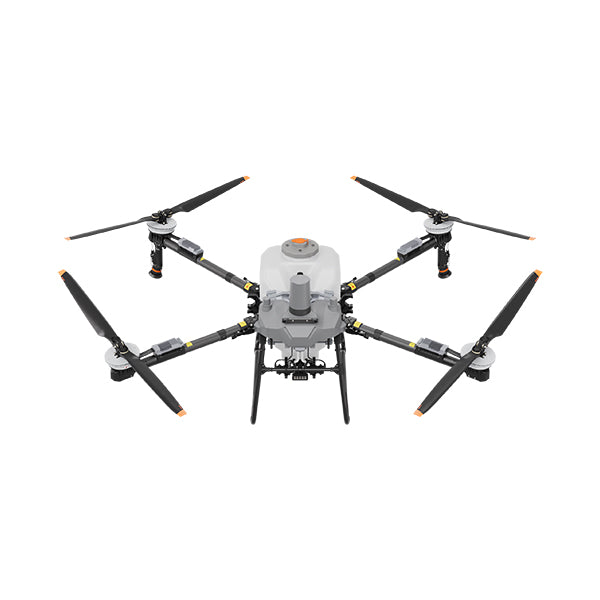

DJI AGRAS T70P
This product includes the airframe only. For a complete setup, please select the package.
AIRCRAFT
| GENERAL SPECS | |
|---|---|
| Product Revision | A |
| hovering accuracy range with GNSS | RTK Enabled:±10 cm (horizontal), ±10 cm (vertical) ; RTK not enabled:Horizontal ± 0.6 m, vertical ± 0.3 m |
| max configurable flight radius | 2 km |
| max lifting takeoff weight DB1580 | 115 kg |
| max lifting takeoff weight DB2160 | 118.5 kg |
| max spraying takeoff weight DB1580 optional 4nozzles | 105 kg |
| max spraying takeoff weight DB1580 standard 2nozzles | 102 kg |
| max spraying takeoff weight DB2160 | 126 kg (standard with 2 nozzles) , 130 kg(optional 4 nozzles) |
| max spreading takeoff weight DB1580 | 126 kg |
| max spreading takeoff weight DB2160 | 130 kg |
| max wheelbase diagonals | 2440 mm |
| max wind speed resistance | <6 m/s |
| motor KV | 65 rpm/V |
| motor stator length | 155 mm |
| motor stator width | 22 mm |
| propeller dimensions | 1550 mm |
| propeller material | Carbon Fiber Composite |
| propeller quantity | 4 pairs |
| PHYSICAL SPECS | |
| heightframe arm unfolded | 960 mm( propellers unfolded) , 960 mm (propellers folded) |
| height frame arm folded | 960 mm (propellers folded) |
| length frame arm folded | 1160 mm (propellers folded) |
| length frame arm unfolded | 3221 mm (propellers unfolded) , 1820 mm (propellers folded) |
| weight with battery | 52 kg (DB1580 battery) ;56 kg (DB2160 battery) |
| width frame arm folded | 900 mm ( propellers folded) |
| width frame arm unfolded | 2100 mm ( propellers unfolded) , 3520 mm ( propellers folded) |
| AIRCRAFT SENSING | |
| AIRCRAFT SENSING distance | 2.5m (Distance between the drone and obstacle after braking and stable hovering) |
| FOV front radar | Horizontal 360°, Vertical ± 45°, Up ± 45° (cone) |
| FOV rear radar | Vertical 360°, Horizontal ± 45° |
| FOV tri-vission system | Horizontal 90°, Vertical 180° |
| measurement range | ≤ 60 m |
| obstacle avoidance height | ≥ 1.5 m |
| operating environment requirements | Adequate light and discernible surroundings |
| operating temperature | 0 °C to 40 °C |
| radar EIRP | < 20 dBm (NCC / MIC / KC / CE / FCC) |
| safe bypass speed | ≤ 13.8 m/s |
REMOTE CONTROLLER
| REMOTE CONTROLLER SPECS | |
|---|---|
| model | TKPL 2 |
