DJI-AGRAS-T100

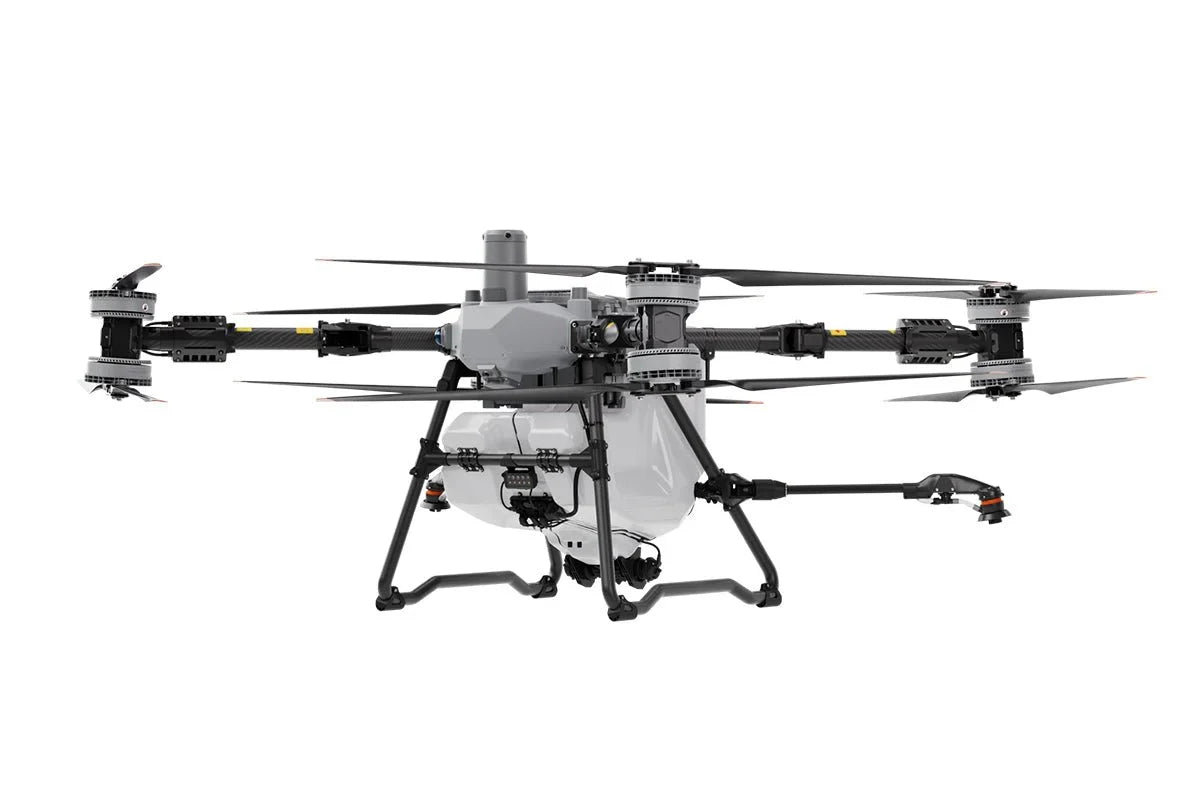

DJI T100 Intelligent Airframe (Overseas V1）
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| charging time | 2 hours |
| Product Revision | A |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| operating temperature | 0 °C to 40 °C |
AIRCRAFT
| GENERAL SPECS | |
|---|---|
| Product Revision | A |
| hovering accuracy range with GNSS | RTK Enabled: ±10 cm (horizontal), ±10 cm (vertical); RTK not enabled:Horizontal ± 0.6 m, vertical ± 0.3 m |
| max configurable flight radius | 2 km |
| max takeoff weight lifting | 165 kg (equipped with lifting system) ; 170 kg (equipped with dual-battery lifting system) |
| max takeoff weight spraying | 175 kg (standard with 2 nozzles) ;177 kg (optional with 4 nozzles) |
| max takeoff weight spreading | 175 kg (equipped with spreading system) |
| max wheelbase diagonals | 2330 mm (diagonal) |
| max wind speed resistance | <6 m/s |
| motor KV | 60 rpm/V |
| motor stator length | 155 mm |
| motor stator width | 16 mm |
| propeller material | Carbon Fiber Composite |
| propeller quantity | 8 pairs |
| weight lifting | 65 kg (equipped with lifting system) ; 90 kg (equipped with dual-battery lifting system) |
| weight spraying | 75 kg (standard with 2 nozzles) ; 77 kg (optional with 4 nozzles) |
| weight spreading | 75 kg |
| PHYSICAL SPECS | |
| heightframe arm unfolded | 975 mm( propellers unfolded) , 975 mm (propellers folded) |
| height frame arm folded | 975 mm (propellers folded) |
| length frame arm folded | 1105 mm (propellers folded) |
| length frame arm unfolded | 3200 mm (propellers unfolded) , 1820 mm (propellers folded) |
| propeller dimensions | 1550 mm |
| width frame arm folded | 1265 mm ( propellers folded) |
| width frame arm unfolded | 3224 mm ( propellers unfolded) , 1840 mm ( propellers folded) |
| AIRCRAFT SENSING | |
| FOV downward radar | Left and Right ± 12.5°, Front and Back ± 22.5° |
| FOV FPV camera | Horizontal ± 86°, Vertical 108° |
| FOV front radar | Horizontal 360°, Vertical ± 45° |
| FOV laser radar | Vertical 272°, Horizontal 60° |
| FOV quad vission system radar | Horizontal 360°, Vertical 180° |
| FOV rear radar | Left and Right ± 45°, Front and Back ± 45° |
| measurement range | ≤ 60 m |
| obstacle avoidance height | ≥ 1.5 m |
| operating environment requirements | Adequate light and discernible surroundings |
| operating temperature | 0 °C to 40 °C |
| radar EIRP | < 20 dBm (NCC / MIC / KC / CE / FCC) |
| safe bypass speed | ≤ 13.8 m/s |
| sensing distance | 2.5m (Distance between the drone and obstacle after braking and stable hovering) |
REMOTE CONTROLLER
| REMOTE CONTROLLER SPECS | |
|---|---|
| maximum voltage | 20 V |
| model | TKPL 2 |
| screen | 7-inch LCD touchscreen; Resolution: 1920 × 1200; LIGHTEN: 1,400 cd/m² |
| storage temperature | Within one month: -30° to 45° C (-22° to 140° F) ; One to three months: -30° to 35° C (-22° to 113° F) ; Three months to one year: -30° to 30° C (-22° to 86° F) |
| BATTERY SPECS | |
| charging type | USB-C Fast recharge charger with a Max Power output of 65 W ; DJI Portable Charger |
| external battery runtime | 3.2 hours |
| internal battery runtime | 3.8 hours |
| recharging temperature | 5° to 40° C (41° to 104° F) |
