DJI-SPREADING-DS80L

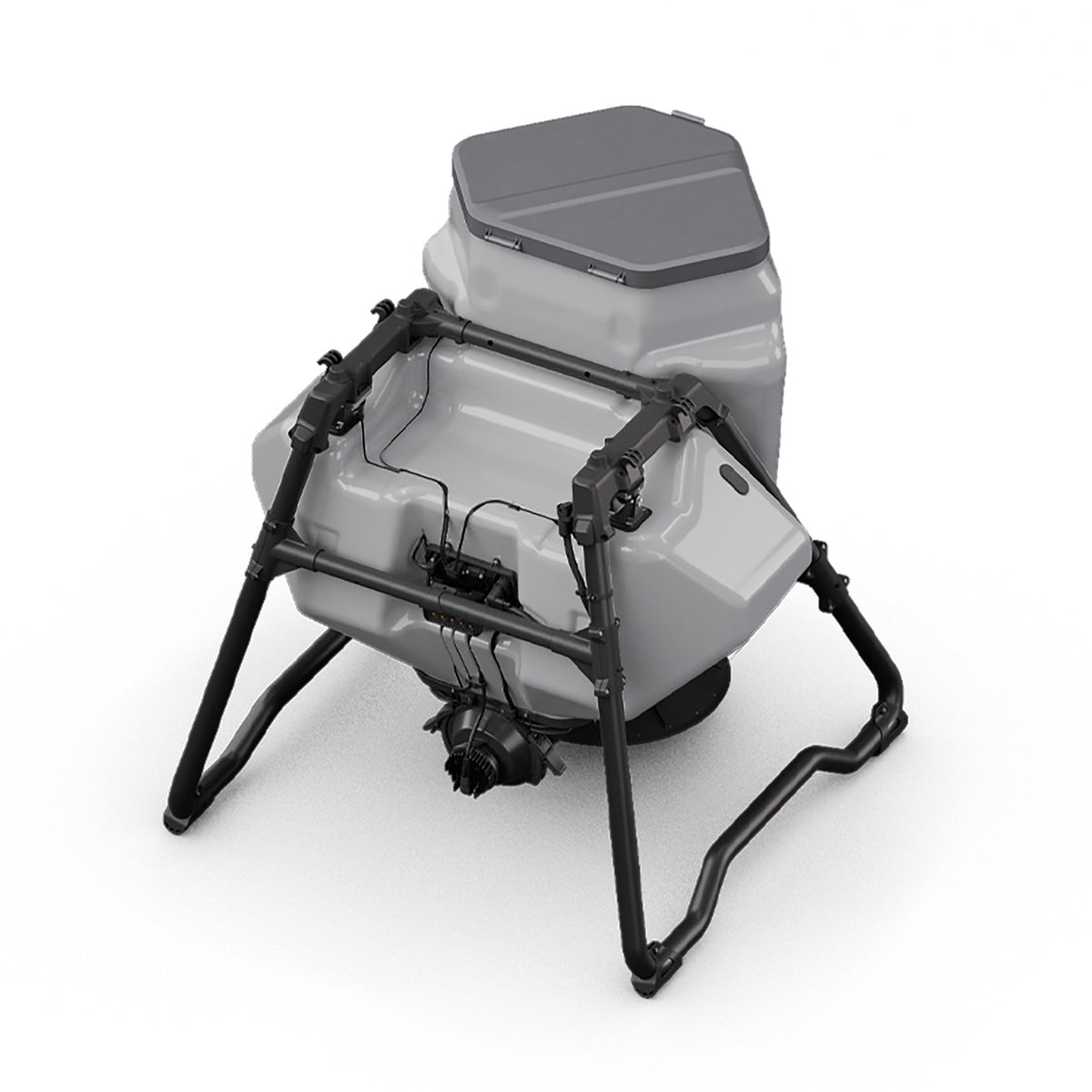

DS80L Spreading System
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| compatible material diameter optional | Large auger: 4 mm–10 mm granules (rice, fertilizer) ; Small and medium-sized auger: 0.5 mm–2 mm pellets (crayfish and prawn feed) ; Small auger: 0.5 mm–4 mm granules (rapeseed, granular herbicides, granular insecticides) |
| compatible material diameter standard | Extra-large auger: 0.5 mm–10 mm granules (fertilizer, wheat, feed, etc.) ; Medium auger: 4 mm–6 mm granules (rice) |
| discharge structure type | Screw Feeder Feeding |
| effective width | 3 - 10 m |
| lifting cable length | 10 m |
| max discharge rate | 400 kg/min (compound fertilizer) |
| model [single line text feild] | DS80L |
| operating payload | 55 kg |
| recommended cable length | 10 - 15 m |
| structure type | Centrifugal Disc |
| volume | 80 L |
| Product Revision | A |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| operating temperature | 0° to 40° C (32° to 104° F) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| height | 80 mm |
| length | 460 mm |
| width | 160 mm |
