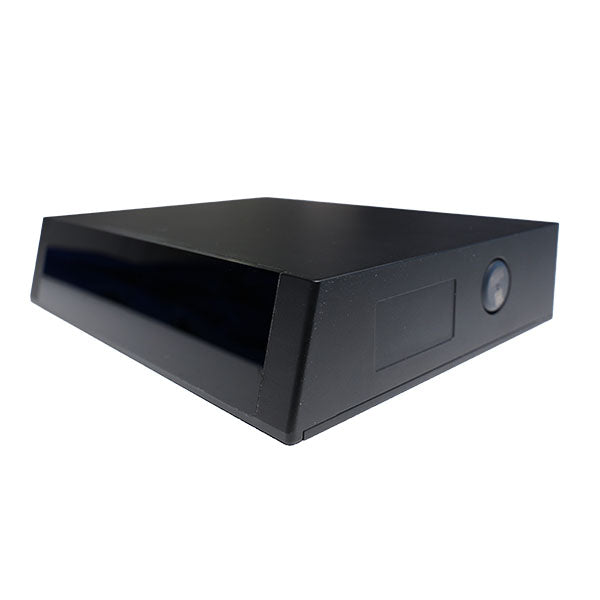

LUMENIX Automotive-Grade 192-Line LiDAR
300 Meter Long-range 192 Line Rotating Mirror LiDAR (Automotive-Grade) Vehicle with vision, we can explore every corner of the earth
| KEY SPECIFICATIONS | |
|---|---|
| data rates | 1,536,000 points/s(Single Return);3,072,000 Points/s(Dual Return) |
| horizontal FOV | 120° |
| horizontal resolution | 0.15°(10Hz) / 0.3°(20Hz) |
| laser wavelength | 905nm |
| number of channels | 192 |
| operating range | 200m@10% reflectivity |
| ranging accuracy | ±5cm |
| ranging distance | 200m@10% reflectivity |
| scanning frequency | 10Hz/20Hz |
| vertical FOV | 25° |
| vertical resolution | 0.13° |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | 15W |
| INTERFACE SPECIFICATIONS | |
|---|---|
| communication interface | Automotive Ethernet(1000M Base T1) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP67, IP6K9K |
| laser safety | Class I (eye safety) |
| temperature operational | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 30 mm |
| product length | 136 mm |
| product weight | 0.6 kg |
| product width | 112 mm |
