LUMRC050-02

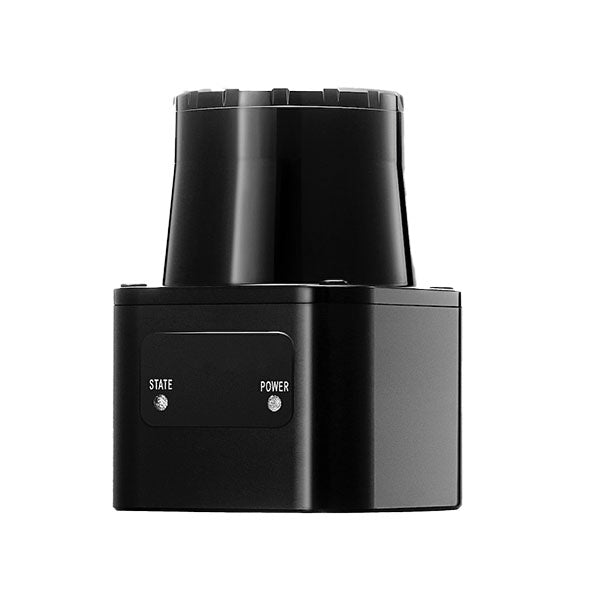

LUMENIX Mini Slam Nivigation LiDAR
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
Overview
LUMENIX Mini Slam Nivigation LiDAR
Makes mobile robots (AMR) become smaller and more agile With Compact Design and more powerful Performance in accuracy, scanning frequency and resolution
| KEY SPECIFICATIONS | |
|---|---|
| data rates | 27000/32400 points/sec |
| horizontal FOV | 270° |
| horizontal resolution | 0.125°@15HZ/0.25°@25HZ |
| laser wavelength | 905nm |
| number of channels | 1 |
| operating range | 50m (15m@10%) |
| ranging accuracy | ±2cm |
| ranging distance | 0.05 - 50m |
| response time | <67ms |
| scanning frequency | 15Hz/25Hz |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | 4W |
| INTERFACE SPECIFICATIONS | |
|---|---|
| communication interface | Ethernet and IO |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP66 GB / T 4208-2007 |
| laser safety | Class I (eye safety) EN 60825-1:2014 |
| temperature operational | -25°C to +50°C |
| temperature storage | -30℃ - 70℃ |

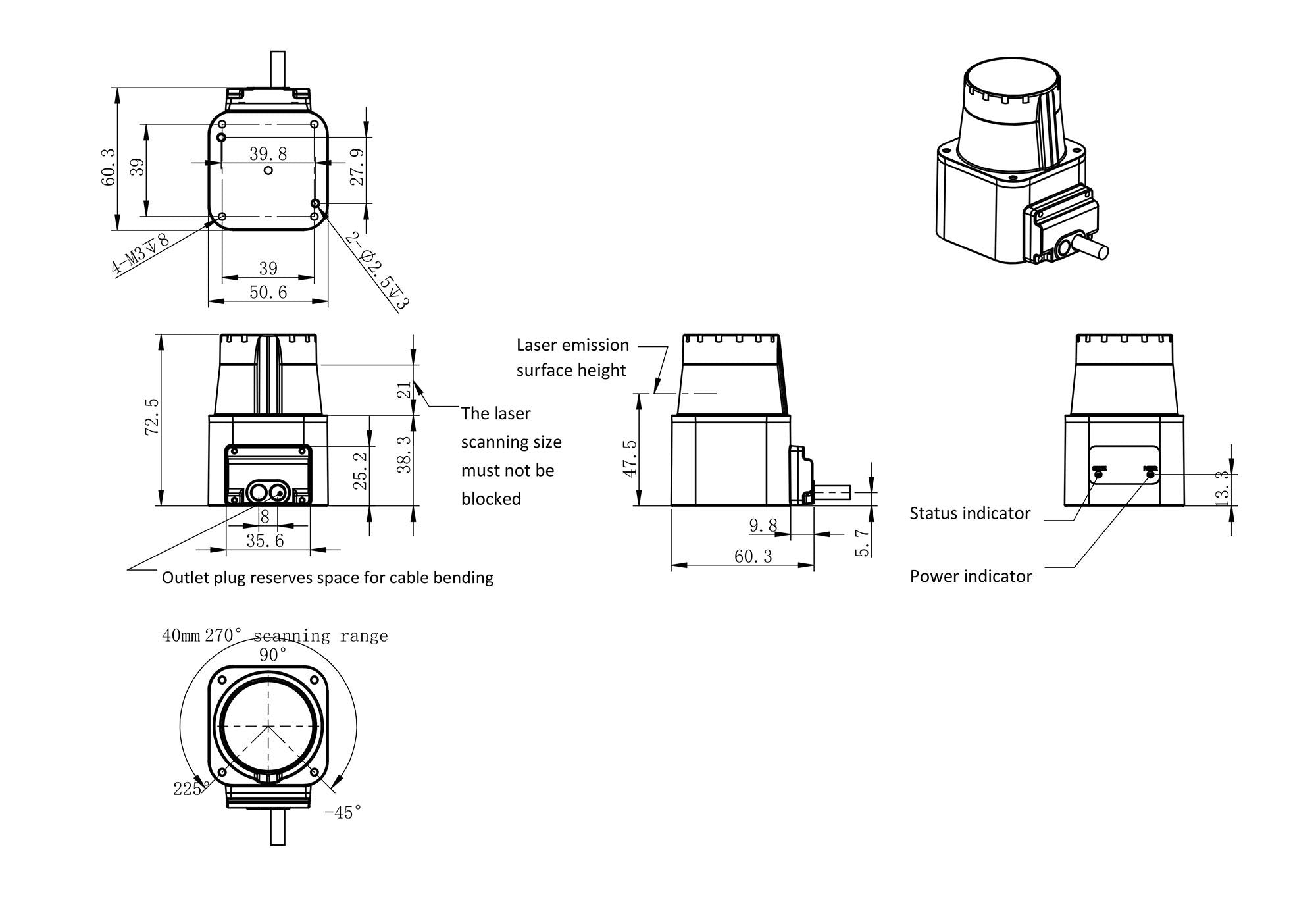

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 72.5 mm |
| product length | 50 mm |
| product weight | 0.3 kg |
| product width | 55 mm |
