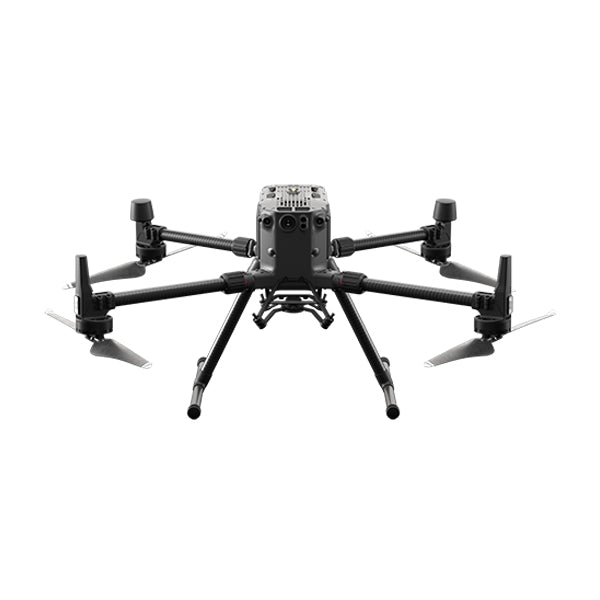

MATRICE 300 RTK (NA)
$5,700.00 USD
Sale price
$5,700.00 USD
Regular price
Skip to product information
Matrice300RTK
MATRICE 300 RTK (NA)
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
In the Box
- Matrice 300 RTK Package 1x
- TB60 Battery 2x
- BS60 Battery Charging Station 1x
AIRCRAFT
| GENERAL SPECS | |
|---|---|
| Product Revision | A |
| DJI care enterprise | Basic |
| GNSS | GPS + GLONASS + BeiDou + Galileo |
| hovering accuracy GPS | ±0.5 m (vertical); ±1.5 m (horizontal) |
| hovering accuracy RTK | ±0.1 m (vertical); ±0.1 m (horizontal) |
| hovering accuracy vision system | ±0.1 m (vertical); ±0.3 m (horizontal) |
| ingress protection rating | IP45 |
| max altitude | 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg) |
| max angular velocity pitch | 300°/s |
| max ascent speed | 6 m/s (S-mode); 5 m/s (P-mode) |
| max descent speed tilted | 7 m/s (S-mode) |
| max descent speed vertical | 5 m/s (S-mode); 4 m/s (P-mode) |
| max flight time | 55 minutes |
| max payload | 930 g (Single Gimbal Damper) |
| max pitch angle | 30° (P-mode, Forward Vision System enabled: 25°) |
| max speed | 23 m/s (S-mode); 17 m/s (P-mode) |
| max takeoff weight | 9 kg |
| max wind speed resistance | 12 m/s |
| max yaw angular velocity | 100°/s |
| operating frequency | 2.4000-2.4835 GHz;5.725-5.850 GHz |
| operating temperature | -20°C to 50°C (-4°F to 122° F) |
| RTK positioning accuracy | 1 cm+1 ppm (Horizontal); 1.5 cm + 1 ppm (Vertical) |
| supported DJI gimbals | Zenmuse XT2/XT S/Z30/H20/H20T/DJI P1/DJI L1 |
| supported gimbal config | Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals |
| transmitter power (EIRP) 2.4GHz | 2.4000-2.4835 GHz: 29.5 dBm (FCC); 18.5dBm (CE);18.5 dBm (SRRC); 18.5dBm (MIC) |
| transmitter power (EIRP) 5.7GHz | 5.725-5.850 GHz:28.5 dBm (FCC); 12.5dBm (CE); 28.5 dBm (SRRC) |
| PHYSICAL SPECS | |
| diagonal wheelbase | 895 mm |
| height folded | 430 mm |
| height unfolded | 430 mm |
| length folded | 430 mm |
| length unfolded | 810 mm |
| weight | Approx. 3.6 kg (without batteries);Approx. 6.3 kg (with two TB60 batteries) |
| width folded | 420 mm |
| width unfolded | 670 mm |
| AIRCRAFT SENSING | |
| IR obstacle sensing range | 0.1-8 m |
| IR operating condition | Large, diffuse, and reflective obstacles (reflectivity > 10%) |
| IR sensing FOV | 30° (±15°) |
| vision FOV fwd/bwd/dwd | 65° (horizontal); 50° (vertical) |
| vision FOV left/right/upward | 75° (horizontal); 60° (vertical) |
| vision obstacle sensing range | 0.7-40 m(Forward/Backward/Left/Right);0.6-30 m(Upward/Downward) |
| vision operating condition | Surfaces with clear patterns and adequate lighting (> 15 lux) |
CAMERAS
| GENERAL SPECS | |
|---|---|
| cameras | FPV Camera |
LIGHTS
| AUXILIARY LIGHT SPECS | |
|---|---|
| illumination distance | 5 m |
| illumination type | 60 Hz, solid glow |
BATTERY STATION
| BATTERY STATION SPECS | |
|---|---|
| compatibles | TB60 Intelligent Flight Battery Ă— 8; WB37 Intelligent Battery Ă— 4 |
| height | 252 mm |
| input | 100-120 VAC, 50-60 Hz;220-240 VAC, 50-60 Hz |
| length | 501 mm |
| max input | 1070 W |
| model | BS60 |
| net weight | 8.37kg |
| operate temp | -4°F to 104°F (-20°C to 40°C) |
| output power | 100-120 V: 750 W;220-240 V: 992 W |
| width | 403 mm |
