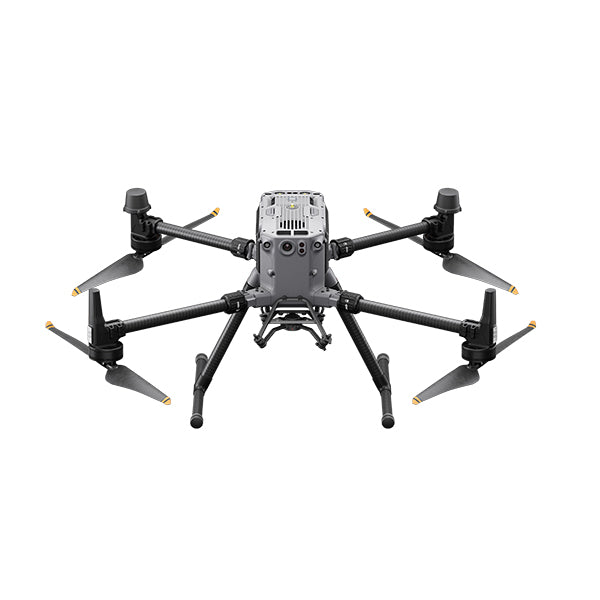

MATRICE 350 RTK（NA） SP Combo
  • MATRICE 350 RTK（NA） SP Combo

Matrice350RTK

MATRICE 350 RTK（NA） SP Combo

Please sign in or create an account to view the price and availability.

Sign In / Create Account
MATRICE 350 RTK（NA） SP Combo


AIRCRAFT

GENERAL SPECS
Product Revision A
app DJI Pilot 2
class C3 (EU)
DJI care enterprise Basic
GNSS GPS + GLONASS + BeiDou + Galileo
hover accuracy horizontal ±0.3 m (with vision positioning); ±1.5 m (with GNSS positioning); ±0.1 m (with RTK positioning)
hover accuracy vertical ±0.1 m (with vision positioning); ±0.5 m (with GNSS positioning);±0.1 m (with RTK positioning)
ingress protection rating IP55
max altitude 5000 m; 7000m
max angular velocity pitch 300°/s
max ascent speed 6 m/s
max descent speed tilted 7 m/s
max descent speed vertical 5 m/s
max flight time 55 minutes
max payload 960 g (Single Gimbal Damper)
max pitch angle 30°
max speed 23 m/s
max takeoff weight 9.2 kg
max wind speed resistance 12 m/s
max yaw angular velocity 100°/s
operating frequency 2.4000-2.4835 GHz;5.150-5.250 GHz (CE: 5.170-5.250 GHz);5.725-5.850 GHz
operating temperature -20° to 50° C (-4° to 122° F)
remote controller DJI RC Plus
RTK positioning accuracy 1 cm + 1 ppm (horizontal); 1.5 cm + 1 ppm (vertical)
supported DJI gimbals Zenmuse H30, Zenmuse H30T, Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse L2, Zenmuse L1, Zenmuse P1, Zenmuse S1, and Zenmuse V1
supported gimbal config Single downward gimbal; Single upward gimbal;Dual downward gimbals;Single downward gimbal + single upward gimbal;Dual downward gimbals + single upward gimbal
third-party payload Supports only certified payloads developed based on DJI Payload SDK.
transmitter power (EIRP) 2.4GHz 2.4000-2.4835 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC)
transmitter power (EIRP) 5.7GHz 5.150-5.250 GHz (CE: 5.170-5.250 GHz): < 23 dBm (CE)/ 5.725-5.850 GHz: < 33 dBm (FCC/SRRC); < 14 dBm (CE)
PHYSICAL SPECS
diagonal wheelbase 895 mm
height folded 430 mm
height unfolded 430 mm
length folded 430 mm
length unfolded 810 mm
weight Approx. 3.77 kg (No batteries); Approx. 6.47 kg (with two TB65 batteries) [downward gimbal]
width folded 420 mm
width unfolded 670 mm
AIRCRAFT SENSING
IR obstacle sensing range 0.1-8 m
IR operating condition Large, diffuse, and reflective obstacles (reflectivity > 10%)
IR sensing FOV 30° (±15°)
vision FOV fwd/bwd/dwd 65° (horizontal); 50° (vertical)
vision FOV left/right/upward 75° (horizontal); 60° (vertical)
vision obstacle sensing range 0.7-40 m(Forward/Backward/Left/Right);0.6-30 m(Upward/Downward)
vision operating condition Surfaces with discernible patterns and adequate lighting (lux > 15)

LIGHTS

AUXILIARY LIGHT SPECS
illumination distance 5 m
illumination type 60 Hz, solid glow

TRANSMISSION

TRANSMISSION SPECS
antenna 4 video transmission antennas, 2T4R
max distance low intf approx. 0-0.5 km (obstructed by buildings) ;0.5-3 km (obstructed by trees)
max distance medium intf approx. 3-9 km
max distance no interference 20 km (FCC);8 km (CE/SRRC/MIC)
max distance strong intf approx. 1.5-3 km
max distance weak intf approx. 9-20 km
system DJI O3 Enterprise Transmission

REMOTE CONTROLLER

REMOTE CONTROLLER SPECS
bluetooth operating frequency 2.4000-2.4835 GHz
bluetooth protocol Bluetooth 5.1
charging method Use a USB-C fast charging charger with a maximum power of no less than 65 W (maximum voltage of 20 V). A DJI portable charger is recommended.
charging temperature 5° to 40° C (41° to 104° F)
charging time 2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method)
dual operator mode Supported
GNSS system GPS + Galileo + BeiDou
IP rating IP54
operating frequency 2.4000-2.4835 GHz; 5.725-5.850 GHz
operating time approx. 3.3 hours (built-in battery only); approx. 6 hours (built-in+external battery)
screen 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
temperature operational -20° to 50° C (-4° to 122° F)
transmitter power (EIRP) 2.4000-2.4835 GHz:< 33 dBm (FCC);< 20 dBm (CE/SRRC/MIC);5.725-5.850 GHz:< 33 dBm (FCC);< 14 dBm (CE);< 23 dBm (SRRC)
type DJI RC Plus
weight Approx. 1.25 kg (without external battery);Approx. 1.42 kg (with external battery)
WIFI operating frequency 2.4000-2.4835 GHz;5.150-5.250 GHz;5.725-5.850 GHz
WIFI protocol Wi-Fi 6
BATTERY SPECS
battery chemical LiNiCoAlO2 (built-in); LiCoO2 (external)
battery life 3.3 hours (built-in); 2.7 hours (external battery)
built-in battery Li-ion (6500 mAh@7.2 V)
charging method Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).
charging time 2 hours
external battery WB37 Intelligent Battery - Li-ion
ex battery capacity 4920 mAh
ex battery energy 37.39 Wh
ex battery power 7.6 V

BATTERY STATION

BATTERY STATION SPECS
compatibles Eight TB65 Intelligent Flight Batteries;Four WB37 Intelligent Batteries
height 254 mm
input 100-120 VAC, 50-60 Hz;220-240 VAC, 50-60 Hz
length 580 mm
max input 1070 W
net weight Approx. 8.98 kg
operate temp -20° to 40° C (-4° to 104° F)
output power 100-120 V: 750 W;220-240 V: 992 W
width 358 mm
