Overview

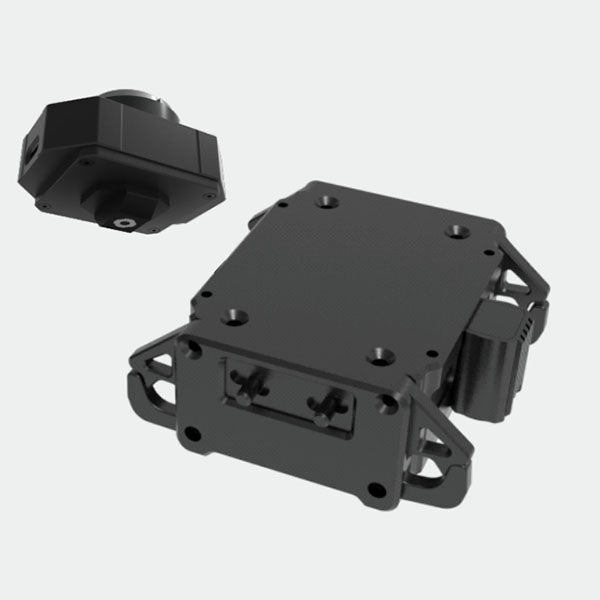

Matrice 400 Payload Dropper
A high-capacity multi-channel payload dropper for emergency delivery and line-laying.
| KEY SPECIFICATIONS | |
|---|---|
| control distance | Same as UAV communication distance |
| control method | Independent channel control; selectable channel ID or one-click drop-all |
| drone compatibility | DJI Matrice 400 |
| laser indicator | Supported |
| load method | Supports unpowered manual quick load & release |
| mounting method | Belly screw mounting (compatible with 3rd gimbal port) |
| number of channels | 4 |
| payload capacity | 10 kg per channel |
| video resolution | 1080P @ 30 fps |
| warning lights | 8 RGB LEDs |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| system power | 20 W |
| INTERFACE SPECIFICATIONS | |
|---|---|
| control software | Pilot2 |
| interface type | E-PORT v2.0 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| operating temperature | –20°C to 60°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 35 mm |
| product length | 77 mm |
| product weight | 300 g |
| product width | 82 mm |
