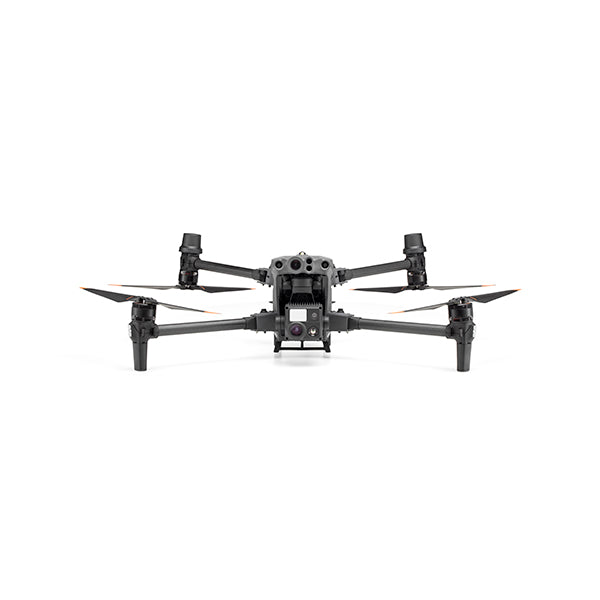

Matrice30T SP(NA)
  • Matrice30T SP(NA)

Matrice30T

Matrice30T SP(NA)

Please sign in or create an account to view the price and availability.

Sign In / Create Account
Matrice30T SP(NA)


KEY SPECIFICATIONS
transmitter power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC);5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <23 dBm (SRRC)
Product Revision A

AIRCRAFT

GENERAL SPECS
Product Revision A
class C2 (EU)
DJI care enterprise Basic
GNSS GPS+Galileo+BeiDou+GLONASS;(GLONASS is supported only when RTK module is enabled)
hover accuracy horizontal ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
hover accuracy vertical ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
ingress protection rating IP55
max angular velocity pitch 150°/sec.
max ascent speed 6 m/s
max descent speed 5 m/s; 7 m/s (tilted)
max flight time no wind 41 min
max horizontal speed 23 m/s
max hover time (no wind) 36 min
max pitch angle 35° (N-mode and Forward Vision System enabled: 25°)
max service ceiling 5,000 m (with 1671 propellers);7,000 m (with 1676 propellers) [no payload]
max takeoff weight 4069 g (Standard) ;3998 g (C2 certification in EU)
max wind speed resistance 12 m/s
max yaw angular velocity 100°/sec.
motor model 3511
operating frequency 2.4000-2.4835 GHz; 5.725-5.850 GHz
operating temperature -20° to 50° C (-4° to 122° F)
propeller model 1671;1676 High Altitude (not included)
remote controller DJI RC Plus
RTK positioning accuracy 1 cm + 1 ppm (horizontal); 1.5 cm + 1 ppm (vertical)
transmitter power (EIRP) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC);5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
PHYSICAL SPECS
diagonal wheelbase 668 mm
height folded 195 mm
height unfolded 215 mm
length folded 365 mm
length unfolded 470 mm
weight 3770 ± 10 g (two batteries)
width folded 215 mm
width unfolded 585 mm
AIRCRAFT SENSING
IR obstacle sensing range 0.1 to 10 m
IR operating condition Large, diffuse, and reflective obstacles (reflectivity >10%)
IR sensing FOV 30°
vision FOV fwd/bwd/dwd 65° (horizontal); 50° (vertical)
vision FOV left/right/upward 65° (horizontal); 50° (vertical)
vision operating condition Surfaces with clear patterns and adequate lighting (> 15 lux)
vision sensing range Forward: 0.6-38 m;Upward/Downward/Backward/Sideward: 0.5-33 m

CAMERAS

GENERAL SPECS
cameras Thermal Camera, Wide Camera, Zoom Camera, FPV Camera
WIDE CAMERA SPECS
electronic shutter speed Photo: 1/8000-1/2 s;Video: 1/8000-1/30 s (Auto Mode);Photo: 1/8000-8 s;Video: 1/8000 -1/30 s (M Mode)
exposure compensation ±3 ev (using 1/3 ev as step length)
image sensor 1/2" CMOS, Effective pixels: 12M
ISO max video resolution 3840×2160
ISO range 100-25600
lens aperture f/2.8
lens DFOV 84°
lens focal length 4.5 mm (equivalent: 24 mm)
lens focus 1 m to ∞
photo size 4000×3000
THERMAL CAMERA SPECS
lens aperture f/1.0
lens DFOV 61°
lens equivalent FL 40 mm
lens focal length 9.1 mm
lens focus 5 m to ∞
NETD ≤50 mK@F1.0
palette White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
pixel pitch 12 um
temperature accuracy ±2°C or ±2% (using the larger value)
temperature alert Supported
thermal imager Uncooled VOx Microbolometer
video resolution Infrared Image Super-resolution Mode: 1280×1024;Normal Mode: 640×512
ZOOM CAMERA SPECS
electronic shutter speed Photo: 1/8000-1/2 s;Video: 1/8000-1/30 s (Auto Mode); Photo: 1/8000-8 s;Video: 1/8000 -1/30 s (M Mode)
exposure compensation ±3 ev (using 1/3 ev as step length)
ISO range 100-25600
lens aperture f/2.8-f/4.2
lens focal length 21-75 mm (equivalent: 113-405 mm)
lens focus 5 m to ∞
max photo size 8000×6000
max video resolution 3840×2160
sensor 1/2" CMOS, Effective pixels: 48M

GIMBAL

GIMBAL SPECS
angular vibration range ±0.01°
controllable rotation range -120° to +45° (tilt); ±90° (pan)
mechanical limits range pan ±105°
mechanical limits range roll ±45°
mechanical limits range tilt -135° to +60°

LIGHTS

AUXILIARY LIGHT SPECS
illumination distance 5 m
illumination type 60 Hz, solid glow

LASER

LASER SPECS
accessible emission limit (AEL) 304.8 nJ
max laser power 3.5 mW
max laser pulse emission power 60.96 W (Within 5 nanoseconds)
measurement accuracy ± (0.2 m + D×0.15%) D is the distance to a vertical surface
measuring range 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)
reference aperture 18mm length, 18mm width (20.3mm diameter if equivalent to circular)
safety regulation level Class 1M
single pulse width 6 ns
wavelength 905 nm

TRANSMISSION

TRANSMISSION SPECS
bluetooth EIRP <10 dBm
bluetooth operating freq 2.4000-2.4835 GHz
max distance medium intf 3-9 km (FCC); 3-6 km (CE/SRRC/MIC)
max distance no interference 15 km (FCC); 8 km (CE/SRRC/MIC)
max distance strong intf 1.5-3 km (FCC/CE/SRRC/MIC)
max distance weak intf 9-15 km (FCC); 6-8 km (CE/SRRC/MIC)
operating frequency 2.4000-2.4835 GHz, 5.725-5.850 GHz
protocol Wi-Fi 6, Bluetooth 5.1
transmitter power EIRP 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
wifi EIRP 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC) 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)
wifi operating frequency 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

REMOTE CONTROLLER

REMOTE CONTROLLER SPECS
antenna 4 Antennas, 2T4R
bluetooth EIRP < 10 dBm
bluetooth operating frequency 2.400-2.4835 GHz
bluetooth protocol Bluetooth 5.1
charging temperature 5° to 40° C (41° to 104° F)
external interfaces microSD Cards: SanDisk Extreme PRO 64GB V30 A2 microSDXC SanDisk High Endurance 64GB V30 microSDXC SanDisk Extreme 128GB V30 A2 microSDXC SanDisk Extreme 256GB V30 A2 microSDXC SanDisk Extreme 512GB V30 A2 microSDXC Lexar 667x 64GB V30 A2 microSDXC Lexar High-Endurance 64GB V30 microSDXC Lexar High-Endurance 128GB V30 microSDXC Lexar 667x 256GB V30 A2 microSDXC Lexar 512GB V30 A2 microSDXC Samsung EVO Plus 64GB V30 microSDXC Samsung EVO Plus 128GB V30 microSDXC Samsung EVO Plus 256GB V30 microSDXC Samsung EVO Plus 512GB V30 microSDXC Kingston Canvas Go! Plus 128GB V30 A2 microSDXC Kingston Canvas React Plus 128GB V90 A1 microSDXC
GNSS system GPS+Galileo+GLONASS
max transmission distance FCC: 15 km;CE/SRRC/MIC: 8 km
operating frequency 2.400-2.4835 GHz;5.725-5.850 GHz
operating time Approx. 3 hours
output port Mini-HDMI port
rated power 12 W
screen 5.5 inch 10-point multi-touch screen, resolution 1920*1080, brightness 1000 nits
storage capacity Internal Storage (ROM): 64 GB;Supports a microSD card for expanded capacity.
storage temperature 1-3months -30° to 45° C (-22° to 113° F)
storage temperature 12months+ -30° to 25° C (-22° to 77° F)
storage temperature 1month -30° to 60° C (-22° to 140° F)
storage temperature 3-12months -30° to 35° C (-22° to 95° F)
supported aircraft model DJI Mavic 3E/3T/3TA
temperature operational -10° to 40° C (14° to 104° F)
video transmission system DJI O3 Enterprise Transmission/DJI O3 Image Transmission Industry Edition
WIFI operating frequency 2.400-2.4835 GHz;5.150-5.250 GHz;5.725-5.850 GHz
WIFI protocol 802.11 a/b/g/n/ac/ax;Support 2×2 MIMO Wi-Fi
WIFI transmitter power 2.4ghz <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
WIFI transmitter power 5.1ghz <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)
WIFI transmitter power 5.8ghz <26 dBm (FCC/SRRC), <14 dBm (CE)
BATTERY SPECS
built-in battery Li-ion (5000 mAh @ 7.2 V)
charging method Recommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
charging time Approx. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V);Approx. 2 hours (with a USB charger at 12 V);Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)

BATTERY STATION

BATTERY STATION SPECS
charge time Approx. 30 min (charging two TB30 batteries from 20% to 90%);Approx. 50 min (charging two TB30 batteries from 0% to 100%)
compatibles TB30 Intelligent Flight Battery;WB37 Intelligent Battery
dimensions 353×267×148 mm
input 100-240 VAC, 50/60 Hz
IP rating IP55
model BS30
net weight 3.95 kg
operate temp -20° to 40° C (-4° to 104° F)
output TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously) WB37 Intelligent Battery: 8.7 V, 6 A
output power 525 W
output power (warming up battery) Approx. 30 W (when not charging battery)
output USB-A Max. output power of 10 W (5 V, 2 A)
output USB-C Max. output power of 65 W
power usage < 8 W (when not charging battery)
protection Anti-Backflow Protection;Short Circuit;Protection;Over Voltage Protection;Over Current Protection;Temperature Protection
