Overview

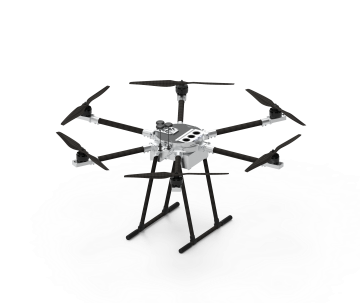

SKYLARK Industry-specific Tethered UAV - Max Ceiling 100m - 12V
STD100 Series is an industry-specific tethered UAV with a net load of 12kg and a maximum flight height of 100m. Supplied by ground electric through tethered cable, it is hover in the air for 24 hours. The tethered UAV with base station equipment can be used for emergency communication during disasters like flood, earthquake, typhoon, etc. It can also carry Optical Zoom Lens Camera, Electrical Optical Pod, Communication Relay Station, Ad-Hoc Equipment, IR, High Intensity Light, Loudspeaker for different scenarios.
AIRCRAFT
| GENERAL SPECS | |
|---|---|
| Product Revision | A |
| cable length | 112m |
| ceiling | 100m |
| control method | Manual/automatic control by remote control; Automatic control from ground station |
| function | Automatic cable retracting and releasing, intelligent automatic cable arrangement |
| hovering accuracy RTK | ±10cm |
| maximum taking-off weight | 32 kg |
| max ascent speed | 4 m/s |
| max descent speed | 2 m/s |
| max payload | 12 kg@100m |
| mission payload | Communication base station equipment,gimbal and EO & IR cameras, lighting/loudspeaker systems |
| optical fiber | Single-mode |
| payload | Depends on the device to be mounted |
| releasing cable | Automatic |
| retracting cable | Automatic |
| security | Automatic landing when ground power supply is interrupted; Automatic landing when the control signal is interrupted |
| support antenna | Omnidirectional Antenna |
| temperature operational | -25°C to +55°C |
| temperature storage | -25℃ to 55℃ |
| UAV Type | Hexa-copter Tether UAV |
| voltage for payload | 12V |
| wind resistance | Level 6 |
| PHYSICAL SPECS | |
| fold product height | 650 mm |
| fold product length | 550 mm |
| fold product width | 460 mm |
| height unfolded | 800 mm |
| length unfolded | 2040 mm |
| roter size | 26'' |
| symmetric motor wheelbase | 1380mm |
| weight | 22 kg |
| width unfolded | 1330 mm |
TRANSMISSION
| TRANSMISSION SPECS | |
|---|---|
| signal | Wireless or Wire |
| WIFI transmission frequency | 2.4 GHz |
