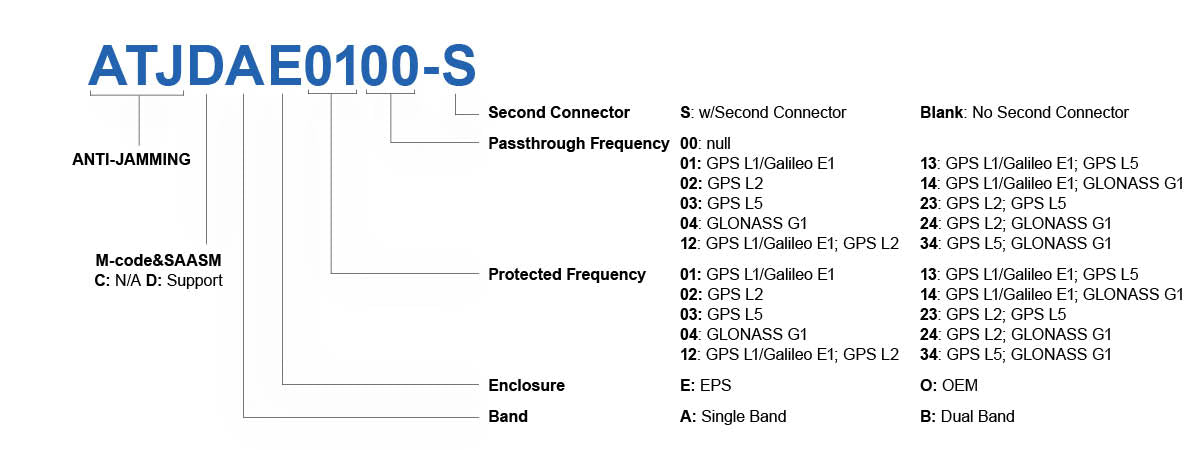

ATJDBE1402
Advanced GNSS Anti-Jamming Module - Dual Band, EPS Protected: L1/ E1+GLONASS G1, Passthrough: L2
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
Overview
Advanced GNSS Anti-Jamming Module - Dual Band, EPS Protected: L1/ E1+GLONASS G1, Passthrough: L2

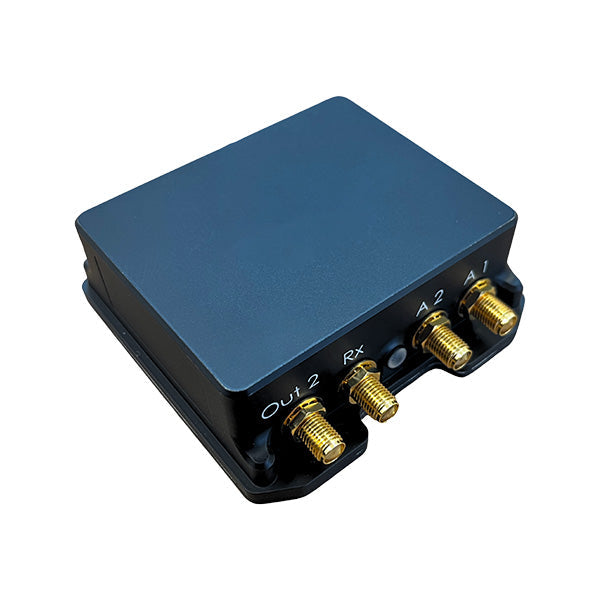

The GPSdome-SunStone Dual Band EPS is a robust, small-sized and lightweight enclosed, dual-band, 2-element GNSS anti-jamming module that keeps navigation and autonomous operations running in GNSS-challenged environments.
- Protects two GNSS bands simultaneously, any two of GPS L1/Galileo E1, GPS L2, GPS L5 and GLONASS G1
- Optional passthrough of up to two additional unprotected GNSS bands
- Optional direct path to a second receiver (unprotected)
- Software-defined, field-upgradeable anti-jamming algorithms with null steering
- Real-time jamming detection, status and power-level monitoring via UART
- Compatible with modern and legacy GNSS receivers with a physical RF input
- IP65-rated enclosure, ready to install
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - supports civilian/commercial use |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | Yes |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands, any two of: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | Yes |
| latency | 100ns ±15ns, fixed |
| operating environment | Civilian, commercial, or military environments |
| passthrough frequency | GPS L2 |
| path gain | ±3 dB |
| protected frequency | GPS L1/Galileo E1; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2/OUT2: optional 50Ω unprotected auxiliary output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX/RX1: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+), 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
