DJI AGRAS T25P Package
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here

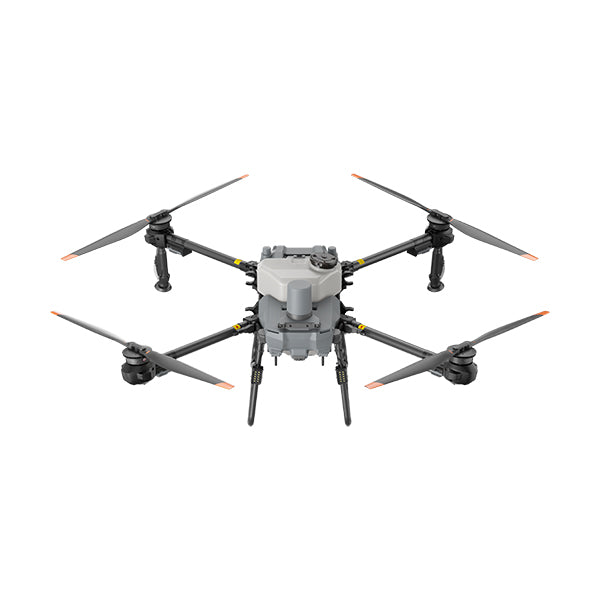

AIRCRAFT
| GENERAL SPECS | |
|---|---|
| hovering accuracy range with GNSS | RTK enabled:Horizontal: ±10 cm, Vertical: ±10 cm ; RTK disabled:Horizontal: ±60 cm, Vertical: ±30 cm |
| max configurable flight radius | 2 km |
| max takeoff weight spraying | 53 kg |
| max takeoff weight spreading | 60 kg |
| max wheelbase diagonals | 1970 mm |
| max wind speed resistance | <6 m/s |
| motor KV | 59 rpm/V |
| motor stator length | 100 mm |
| motor stator width | 28 mm |
| propeller dimensions | 1270 mm |
| propeller material | Nylon carbon fiber |
| propeller quantity | 4 pairs |
| PHYSICAL SPECS | |
| weight without battery | 26 kg |
| weight with battery | 33 kg (spraying with battery) |
| AIRCRAFT SENSING | |
| AIRCRAFT SENSING distance | 2.5m (Distance between the drone and obstacle after braking and stable hovering) |
| FOV front radar | Horizontal 360°, Vertical ±45°, Upper ±45° (cone) |
| FOV rear radar | Vertical 360°, Horizontal ±45° |
| FOV tri-vission system | Horizontal 90°, Vertical 180° |
| measurement range | ≤ 60 m |
| obstacle avoidance height | ≥ 1.5 m |
| operating environment requirements | Adequate light and discernible surroundings |
| operating temperature | 0 °C to 40 °C |
| radar EIRP | <20 dBm (NCC/MIC/KC/CE/FCC) |
| safe bypass speed | ≤ 10 m/s |
REMOTE CONTROLLER
| REMOTE CONTROLLER SPECS | |
|---|---|
| maximum voltage | 20 V |
| model | TKPL 2 |
| screen | 7-inch LCD touchscreen; Resolution: 1920 × 1200; LIGHTEN: 1,400 cd/m² |
| storage temperature | Less than one month: -30° to 45° C (-22° to 113° F);One to three months: -30° to 35° C (-22° to 95° F) ; Three months to one year: -30° to 30° C (-22° to 86° F) |
| BATTERY SPECS | |
| charging time | 2 hours |
| charging type | USB-C Fast recharge charger with a Max Power output of 65 W ; DJI Portable Charger |
| external battery runtime | 3.2 hours |
| internal battery runtime | 3.8 hours |
| recharging temperature | 5° to 40° C (41° to 104° F) |

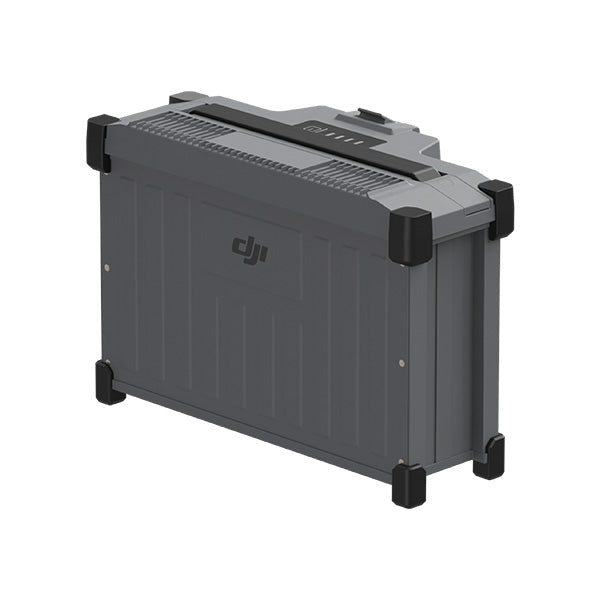

BATTERY
| BATTERY SPECS | |
|---|---|
| DB800 capacity | 15500 mAh |
| DB800 voltage | 52.22 V |
| DB800 weight | Approx. 6.6 kg |

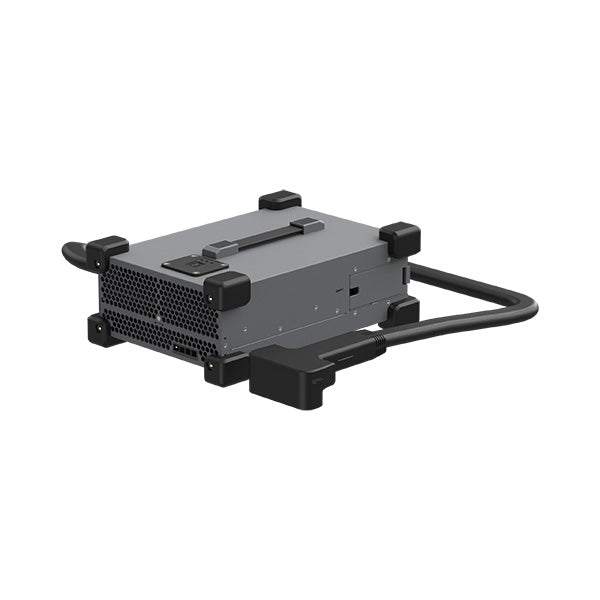

CHARGER
| CHARGER SPECS | |
|---|---|
| AIRCRAFT SENSING | AC wire protection, power wire protection, and charge connector protection |
| charging time | Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery) |
| height | 230 mm |
| input voltage | 100-240 Vac |
| length [single line text feild] | 300 mm |
| model | C8000 |
| output current | 100A max |
| output voltage | 59.92V |
| protection functions | Over-voltage, over-charge, under-voltage and over-temperature protection. |
| weight | 11.5 kg |
| width [single line text feild] | 280mm |
