DJI AGRAS T55 / DB1580 Package

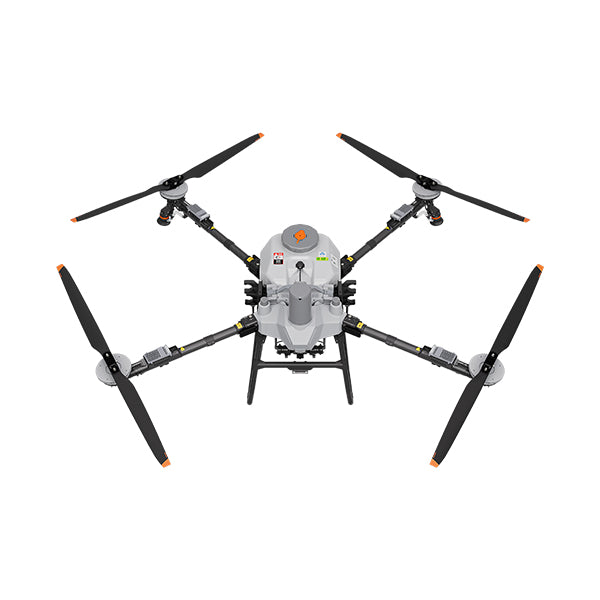

AIRCRAFT

GENERAL SPECS
hovering accuracy range with GNSS RTK enabled: ± 10 cm (horizontal), ± 10 cm (vertical), RTK disabled: ± 0.6 m (horizontal), ± 0.3 m (vertical)
max configurable flight radius 2 km
max lifting takeoff weight DB1580 115 kg
max spraying takeoff weight DB1580 optional 4nozzles 105 kg
max spraying takeoff weight DB1580 standard 2nozzles 102 kg
max spreading takeoff weight DB1580 126 kg
max wheelbase diagonals 2415 mm
max wind speed resistance <6 m/s
motor KV 55 rpm/V
motor stator length 155 mm
motor stator width 16 mm
propeller dimensions 1575 mm
propeller material Carbon Fiber Composite
propeller quantity 4 pairs
PHYSICAL SPECS
heightframe arm unfolded 934mm (propellers unfolded), 934mm (propellers folded)
height frame arm folded 934mm (propellers folded)
length frame arm folded 1120 mm (propellers folded)
length frame arm unfolded 3190 mm (propellers unfolded) , 1800 mm (propellers folded)
weight without battery 48.4 kg
width frame arm folded 896 (propellers folded)
width frame arm unfolded 3570mm ( propellers unfolded) , 2170mm ( propellers folded)
AIRCRAFT SENSING
AIRCRAFT SENSING distance 2.5 m (distance from the obstacle after the aircraft brakes and stabilizes in Hover)
FOV downward radar Left and Right ± 45°, Front and Back ± 45°
FOV FPV camera 86° horizontal, 155° vertical
FOV front radar horizontal 360°, vertical ± 45°
FOV rear radar Left and Right ± 45°, Front and Back ± 45°
FOV top radar Left and Right ± 45°, Front and Back ± 45°
FOV tri-vission system horizontal 360°, vertical 180°
measurement range 60 m
obstacle avoidance height ≥ 1.5 m
operating environment requirements Normal light intensity, rich Scene texture features, and no dirt.
operating temperature 0° to 40° C (32° to 104° F)
power consumption downward radar 3.5 W (peaking)
power consumption front radar 36 W (peaking)
power consumption rear radar 3.5 W (peaking)
radar EIRP < 20 dBm (NCC / KC / CE / FCC) ; < 13 dBm (MIC)
safe bypass speed ≤ 13.8 m/s

REMOTE CONTROLLER

REMOTE CONTROLLER SPECS
maximum voltage 20 V
model TKPL 2
screen 7-inch LCD touchscreen; Resolution: 1920 × 1200; LIGHTEN: 1,400 cd/m²
storage temperature Within one month: -30° to 45° C (-22° to 140° F) ; One to three months: -30° to 35° C (-22° to 113° F) ; Three months to one year: -30° to 30° C (-22° to 86° F)
BATTERY SPECS
charging time 2 hours
charging type USB-C Fast recharge charger with a Max Power output of 65 W ; DJI Portable Charger
external battery runtime 3.2 hours
internal battery runtime 3.8 hours
recharging temperature 5° to 40° C (41° to 104° F)

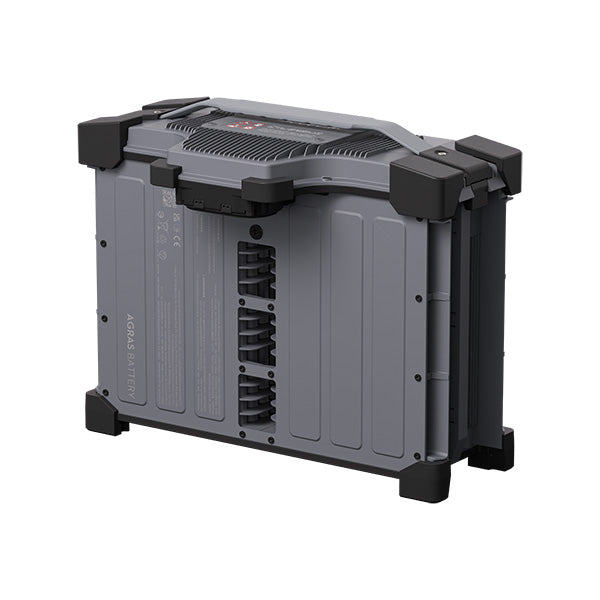

BATTERY

BATTERY SPECS
DB1580 capacity 30000 mAh
DB1580 voltage 52 V
DB1580 weight 11.7 ± 0.3 kg

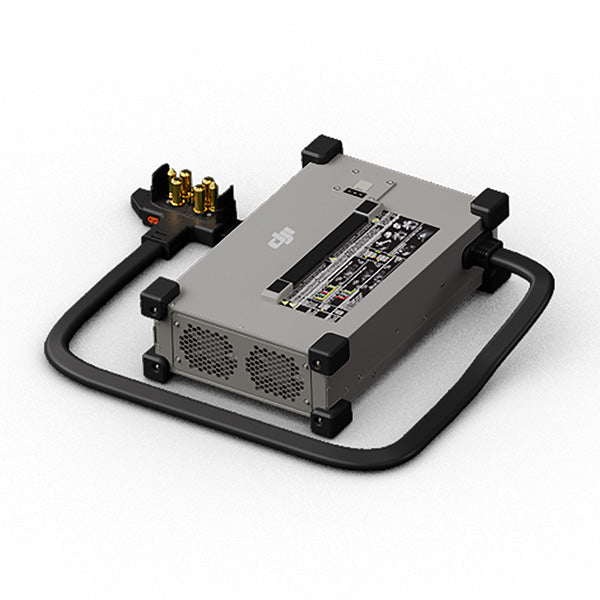

CHARGER

CHARGER SPECS
charging time 8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95% charge)
compatible battery DB1050 / DB1580 / DB2160 Intelligent Flight Battery
height 80 mm
input voltage Single-phase 220 - 240 V ; Three-phase 380 - 480 V
length [single line text feild] 460 mm
model CSX711-7000
operating.temperatures -20° to 40° C (-4° to 104° F)
output channels 1
output current Single-phase 40 A ; Three-phase, 140 A
output voltage 50 - 62 V
protection functions Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions
rated power 7000 W (three-phase 380 V input) ; 2000 W (single-phase 220 V input)
weight 8.5 kg
width [single line text feild] 160 mm
