DJI AGRAS T55 / DB1050 Package
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
AIRCRAFT
| GENERAL SPECS | |
|---|---|
| hovering accuracy range with GNSS | RTK enabled: ± 10 cm (horizontal), ± 10 cm (vertical), RTK disabled: ± 0.6 m (horizontal), ± 0.3 m (vertical) |
| max configurable flight radius | 2 km |
| max takeoff weight lifting | 84 kg |
| max takeoff weight spraying | 95 kg |
| max takeoff weight spreading | 104 |
| max wheelbase diagonals | 2415 mm |
| max wind speed resistance | <6 m/s |
| motor KV | 55 rpm/V |
| motor stator length | 155 mm |
| motor stator width | 16 mm |
| propeller dimensions | 1575 mm |
| propeller material | Carbon Fiber Composite |
| propeller quantity | 4 pairs |
| PHYSICAL SPECS | |
| heightframe arm unfolded | 934mm (propellers unfolded), 934mm (propellers folded) |
| height frame arm folded | 934 mm (propellers folded) |
| length frame arm folded | 1120 mm (propellers folded) |
| length frame arm unfolded | 3190 mm (propellers unfolded) , 1800 mm (propellers folded) |
| weight without battery | 45 kg |
| width frame arm folded | 896 (propellers folded) |
| width frame arm unfolded | 3570mm ( propellers unfolded) , 2170mm ( propellers folded) |
| AIRCRAFT SENSING | |
| AIRCRAFT SENSING distance | 2.5 m (distance from the obstacle after the aircraft brakes and stabilizes in Hover) |
| FOV downward radar | Left and Right ± 45°, Front and Back ± 45° |
| FOV FPV camera | 86° horizontal, 155° vertical |
| FOV front radar | horizontal 360°, vertical ± 45° |
| FOV rear radar | Left and Right ± 45°, Front and Back ± 45° |
| FOV top radar | Left and Right ± 45°, Front and Back ± 45° |
| FOV tri-vission system | horizontal 360°, vertical 180° |
| measurement range | 60 m |
| obstacle avoidance height | ≥ 1.5 m |
| operating environment requirements | Normal light intensity, rich Scene texture features, and no dirt. |
| operating temperature | 0° to 40° C (32° to 104° F) |
| power consumption downward radar | 3.5 W (peaking) |
| power consumption front radar | 36 W (peaking) |
| power consumption rear radar | 3.5 W (peaking) |
| radar EIRP | < 20 dBm (NCC / KC / CE / FCC) ; < 13 dBm (MIC) |
| safe bypass speed | ≤ 13.8 m/s |
REMOTE CONTROLLER
| REMOTE CONTROLLER SPECS | |
|---|---|
| maximum voltage | 20 V |
| model | TKPL 2 |
| screen | 7-inch LCD touchscreen; Resolution: 1920 × 1200; LIGHTEN: 1,400 cd/m² |
| storage temperature | Within one month: -30° to 45° C (-22° to 140° F) ; One to three months: -30° to 35° C (-22° to 113° F) ; Three months to one year: -30° to 30° C (-22° to 86° F) |
| BATTERY SPECS | |
| charging time | 2 hours |
| charging type | USB-C Fast recharge charger with a Max Power output of 65 W ; DJI Portable Charger |
| external battery runtime | 3.2 hours |
| internal battery runtime | 3.8 hours |
| recharging temperature | 5° to 40° C (41° to 104° F) |

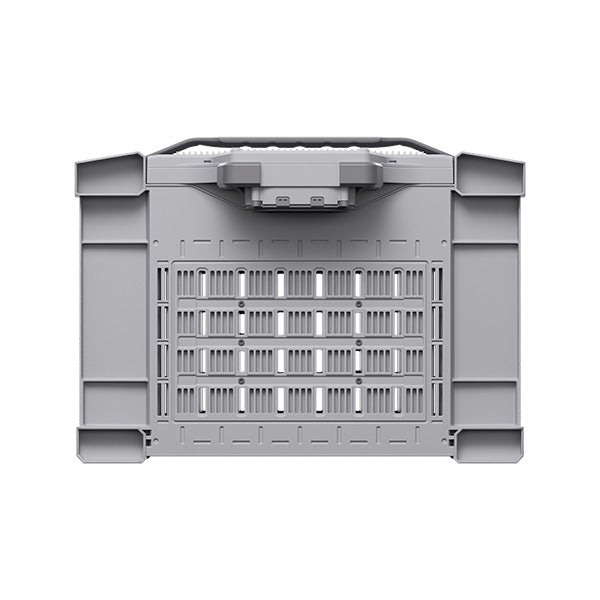

BATTERY
| BATTERY SPECS | |
|---|---|
| DB1050 capacity | 20000 mAh |
| DB1050 voltage | 52.5 V |
| DB1050 weight | 11.7 ± 0.3 kg |

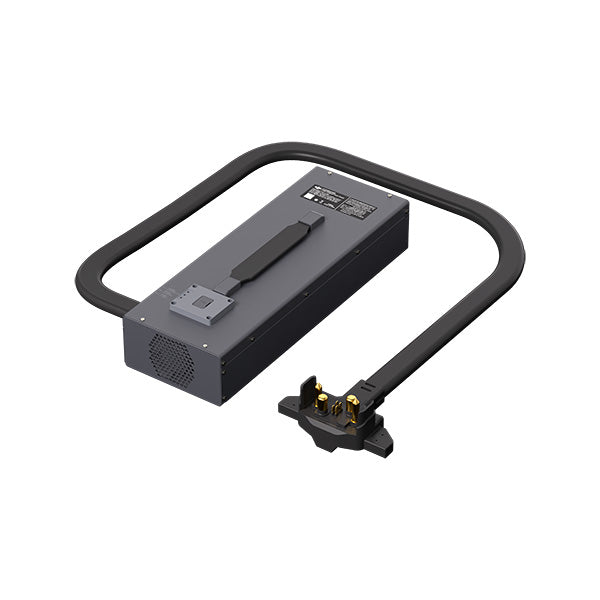

CHARGER
| CHARGER SPECS | |
|---|---|
| charging time | 8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95% charge) |
| compatible battery | DB1050 / DB1580 / DB2160 Intelligent Flight Battery |
| height | 80 mm |
| input voltage | Single-phase 220 - 240 V ; Three-phase 380 - 480 V |
| length [single line text feild] | 460 mm |
| model | CSX711-7000 |
| operating.temperatures | -20° to 40° C (-4° to 104° F) |
| output channels | 1 |
| output current | Single-phase 40 A ; Three-phase, 140 A |
| output voltage | 50 - 62 V |
| protection functions | Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions |
| rated power | 7000 W (three-phase 380 V input) ; 2000 W (single-phase 220 V input) |
| weight | 8.5 kg |
| width [single line text feild] | 160 mm |
