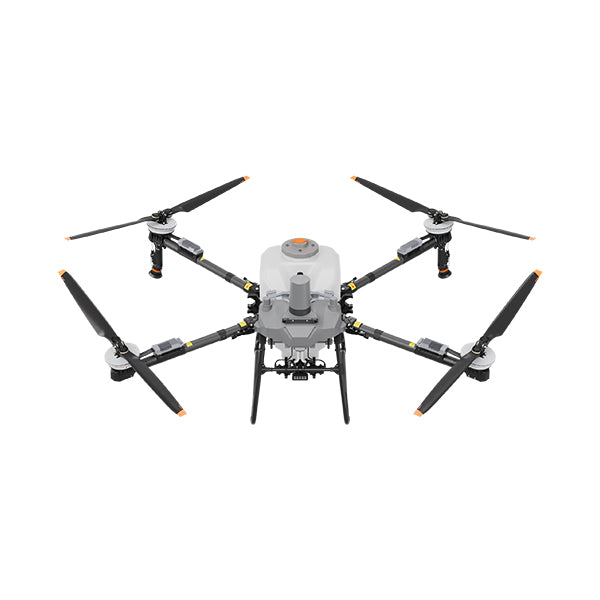

AIRCRAFT
| GENERAL SPECS | |
|---|---|
| hovering accuracy range with GNSS | RTK Enabled:±10 cm (horizontal), ±10 cm (vertical) ; RTK not enabled:Horizontal ± 0.6 m, vertical ± 0.3 m |
| max configurable flight radius | 2 km |
| max lifting takeoff weight DB1580 | 115 kg |
| max lifting takeoff weight DB2160 | 118.5 kg |
| max spraying takeoff weight DB1580 optional 4nozzles | 105 kg |
| max spraying takeoff weight DB1580 standard 2nozzles | 102 kg |
| max spraying takeoff weight DB2160 | 126 kg (standard with 2 nozzles) , 130 kg(optional 4 nozzles) |
| max spreading takeoff weight DB1580 | 126 kg |
| max spreading takeoff weight DB2160 | 130 kg |
| max wheelbase diagonals | 2440 mm |
| max wind speed resistance | <6 m/s |
| motor KV | 65 rpm/V |
| motor stator length | 155 mm |
| motor stator width | 22 mm |
| propeller dimensions | 1550 mm |
| propeller material | Carbon Fiber Composite |
| propeller quantity | 4 pairs |
| PHYSICAL SPECS | |
| heightframe arm unfolded | 960 mm( propellers unfolded) , 960 mm (propellers folded) |
| height frame arm folded | 960 mm (propellers folded) |
| length frame arm folded | 1160 mm (propellers folded) |
| length frame arm unfolded | 3221 mm (propellers unfolded) , 1820 mm (propellers folded) |
| weight with battery | 52 kg (DB1580 battery) ;56 kg (DB2160 battery) |
| width frame arm folded | 900 mm ( propellers folded) |
| width frame arm unfolded | 2100 mm ( propellers unfolded) , 3520 mm ( propellers folded) |
| AIRCRAFT SENSING | |
| AIRCRAFT SENSING distance | 2.5m (Distance between the drone and obstacle after braking and stable hovering) |
| FOV front radar | Horizontal 360°, Vertical ± 45°, Up ± 45° (cone) |
| FOV rear radar | Vertical 360°, Horizontal ± 45° |
| FOV tri-vission system | Horizontal 90°, Vertical 180° |
| measurement range | ≤ 60 m |
| obstacle avoidance height | ≥ 1.5 m |
| operating environment requirements | Adequate light and discernible surroundings |
| operating temperature | 0 °C to 40 °C |
| radar EIRP | < 20 dBm (NCC / MIC / KC / CE / FCC) |
| safe bypass speed | ≤ 13.8 m/s |
REMOTE CONTROLLER
| REMOTE CONTROLLER SPECS | |
|---|---|
| maximum voltage | 20 V |
| model | TKPL 2 |
| screen | 7-inch LCD touchscreen; Resolution: 1920 × 1200; LIGHTEN: 1,400 cd/m² |
| storage temperature | Less than one month: -30° to 45° C (-22° to 113° F) ; One to three months: -30° to 35° C (-22° to 95° F) ; Three months to one year: -30° to 30° C (-22° to 86° F) |
| BATTERY SPECS | |
| charging time | 2 hours |
| charging type | USB-C Fast recharge charger with a Max Power output of 65 W ; DJI Portable Charger |
| external battery runtime | 3.2 hours |
| internal battery runtime | 3.8 hours |
| recharging temperature | 5° to 40° C (41° to 104° F) |

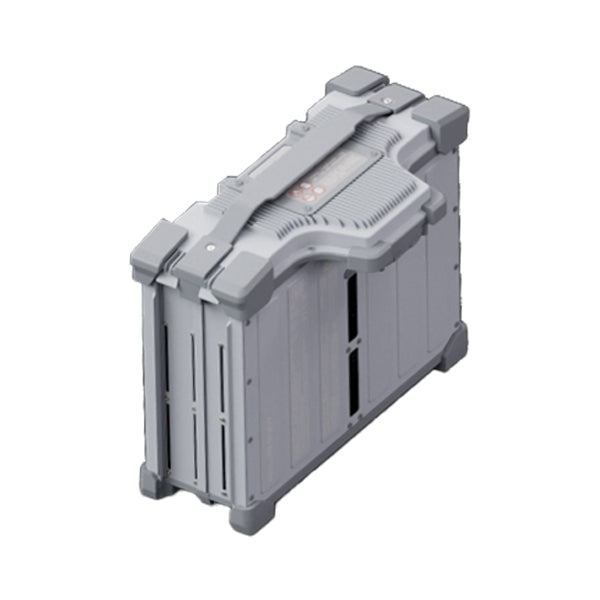

BATTERY
| BATTERY SPECS | |
|---|---|
| DB2160 capacity | 41000 mAh |
| DB2160 voltage | 52 V |
| DB2160 weight | 14.7 ± 0.3 kg |
CHARGER
| CHARGER SPECS | |
|---|---|
| charging time | 7 - 8 mins (DB1580 Intelligent Flight Battery, 30% - 95% charge) ; 8 - 9 mins (DB2160 Intelligent Flight Battery, 30% - 95% charge) |
| compatible battery | DB1580 / DB2160 Intelligent Flight Battery |
| height | 107 mm |
| input voltage | Three-phase AC input: 175 - 520 V ; Single-phase AC input: 200 - 264 V |
| length [single line text feild] | 456 mm |
| model | C12000 |
| operating.temperatures | 0° to 40° C |
| output channels | 1 |
| output current | 194 A |
| output voltage | 62 V |
| protection functions | Over-voltage, over-charge, under-voltage and over-temperature protection. |
| rated power | 12000 W (three-phase 380 V input)3000 W (single-phase 220 V input) |
| weight | 13.13 kg |
| width [single line text feild] | 291 mm |
