OPT225B10

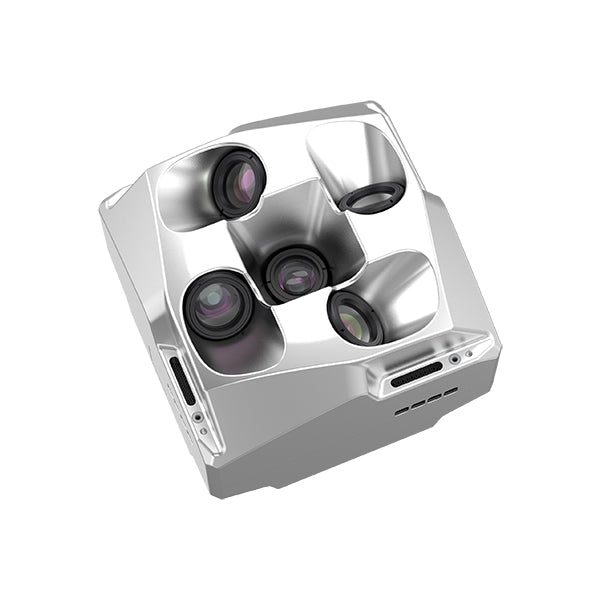

Full-frame 5 Lens Aerial Surveying Equipment
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| focal length | ortho 40/ oblique56 mm |
| ISO range | 100-6400 |
| lens appreture | F5.6 |
| min exposure interval | 0.5 seconds |
| number of lens | 5 PCs |
| shutter speed range | 1/100s-1/2000s |
| total pixels | 225 MP |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power supply mode | Skyport/DC（12V-27V） |
| INTERFACE SPECIFICATIONS | |
|---|---|
| adjustment method | RC/SerialPort |
| data processing | Skyscanner |
| max data transfer speed | 500MB/s |
| max image size | 26 MB |
| photo resolution high | 8192px |
| photo resolution wide | 5456px |
| protocol | RieboSDK;Mavlink2 |
| protocol function | SupportsAdjustingShutter, ISO,WhiteBalance, Contrast,Sharpness,EV,Saturation, image Quality,CustomFolders,CustomImageNames, |
| route planning | AeroMap |
| storage | 640GB*2 |
| trigger method | Skyport/Low-level/SerialPort |
| video record | 4K@30FPS |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40℃-65℃ |
| working humidity | ≤40℃95%RH |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 113.5 mm |
| product length | 144.5 mm |
| product weight | 1.130 kg |
| product width | 144.5 mm |
| sensor length | 36 mm |
| sensor width | 24 mm |
