GQR0116L
Intelligent Quadruped Robot - Lite
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
Overview

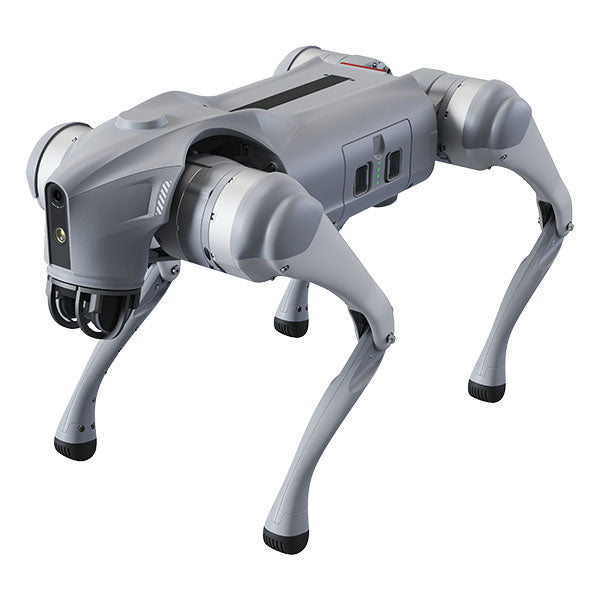

Intelligent Quadruped Robot - Lite
| KEY SPECIFICATIONS | |
|---|---|
| battery life | 1 - 2 h |
| climbing angle | 40° |
| max climb drop height | about 16 cm |
| payload | 12 kg max. |
| range of motion body | -48 - 48° |
| range of motion shank | -156° - -48° |
| range of motion thigh | -200° - 90° |
| speed | 0 - 3.5 m/s |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| basic computing power | 8-core high-performance CPU |
| battery capacity | 8000 mAh |
| battery voltage | 28 - 33.6 V |
| charger | fast charge (33.6V 9A) |
| endurance ability | standard |
| max working power | 3000 W |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | 10°C to 40°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| aluminum knee joint moter | 12 sets |
| key features | Basic action, upgraded intelligent OTA, RTT 2.0 pictures transaction, graphical programme, front lamp, WiFi6 with Dual-band, bluetooth 5.2/4.2/2.1, 4G module, voice function, ISS 2.0 intelligent side-follow system, intelligent detection and avoidance, charging pile compatibility, secondary development, manual controller |
| LiDAR | Super-wide-angle 3D LIDAR included |
| lying prone height | 200 mm |
| lying prone length | 760 mm |
| lying prone width | 310 mm |
| material | Aluminium alloy + High strength engineering plastic |
| max joint torque | 45 N.m |
| product weight | 15 kg (battery included) |
| standing height | 400 mm |
| standing length | 700 mm |
| standing width | 310 mm |
