LRFB17500IC

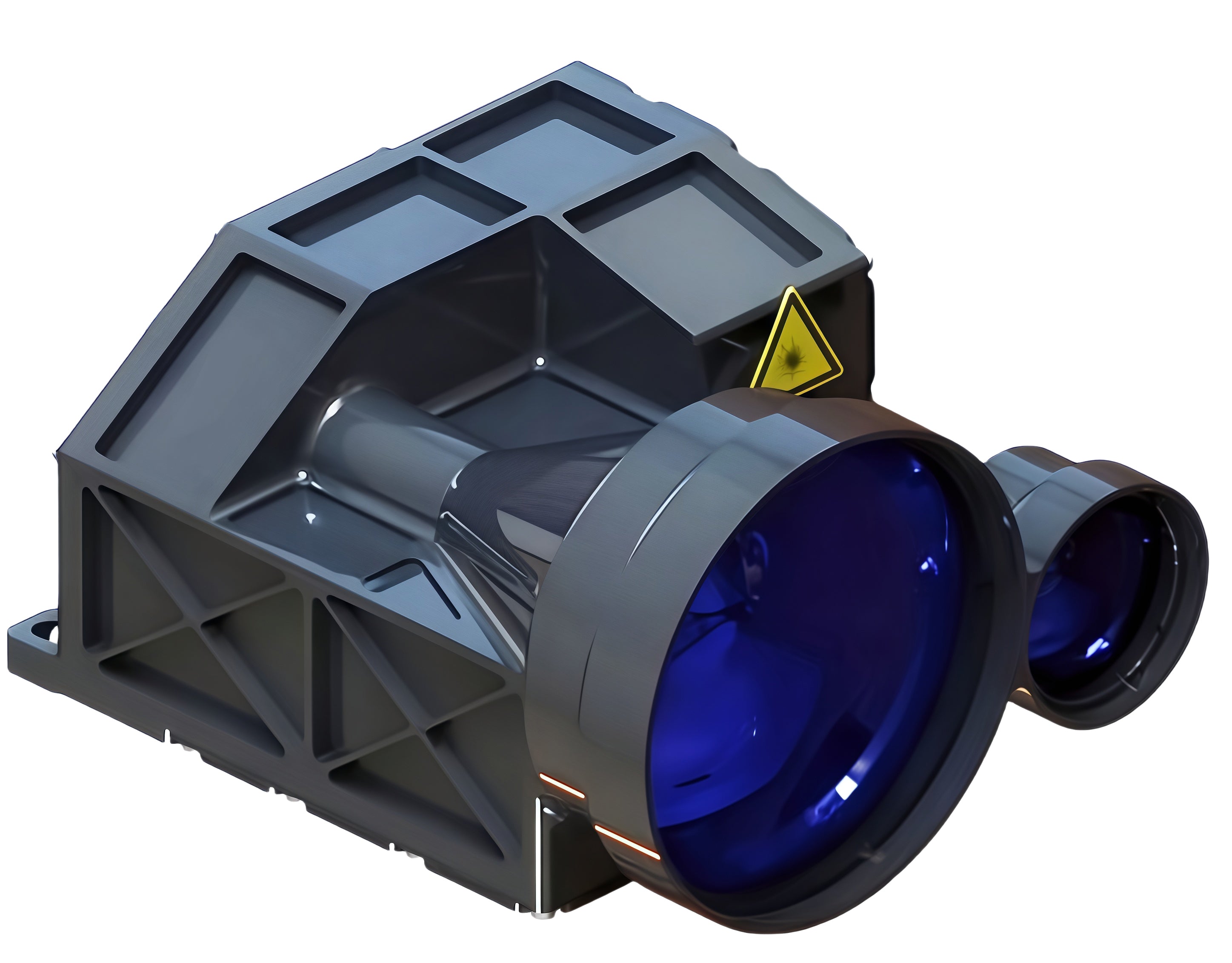

Laser Rangefinder 1535 nm LRFB17500IC
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| maximum target distance | 17500 m |
| minimum detection range | 120m |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ±1m |
| laser rangefinder operating wavelength | 1535nm ± 10nm |
| laser rangefinder peak power | 0.125 MW |
| laser rangefinder ranging range | ≥120m - 17500m |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Standby≤2.5W; Avg≤6W |
| power supply | DC 18 - 36V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +60°C |
| temperature storage | -55°C to +70°C |

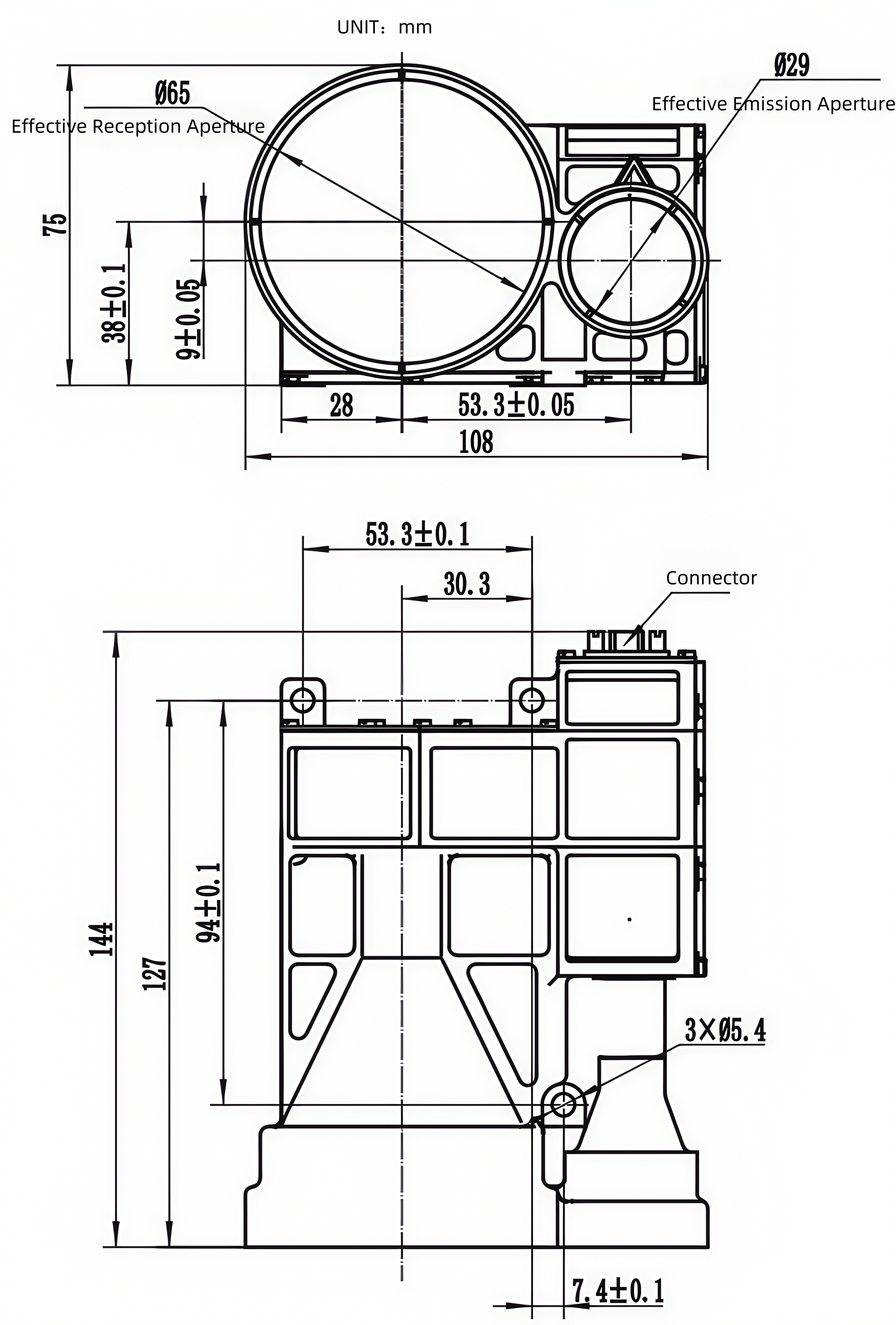

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 75 mm |
| product length | 144 mm |
| product weight | ≤0.596 kg |
| product width | 108 mm |
| volume | ≤144 x108 x 75 mm |
