LRFB20000HC

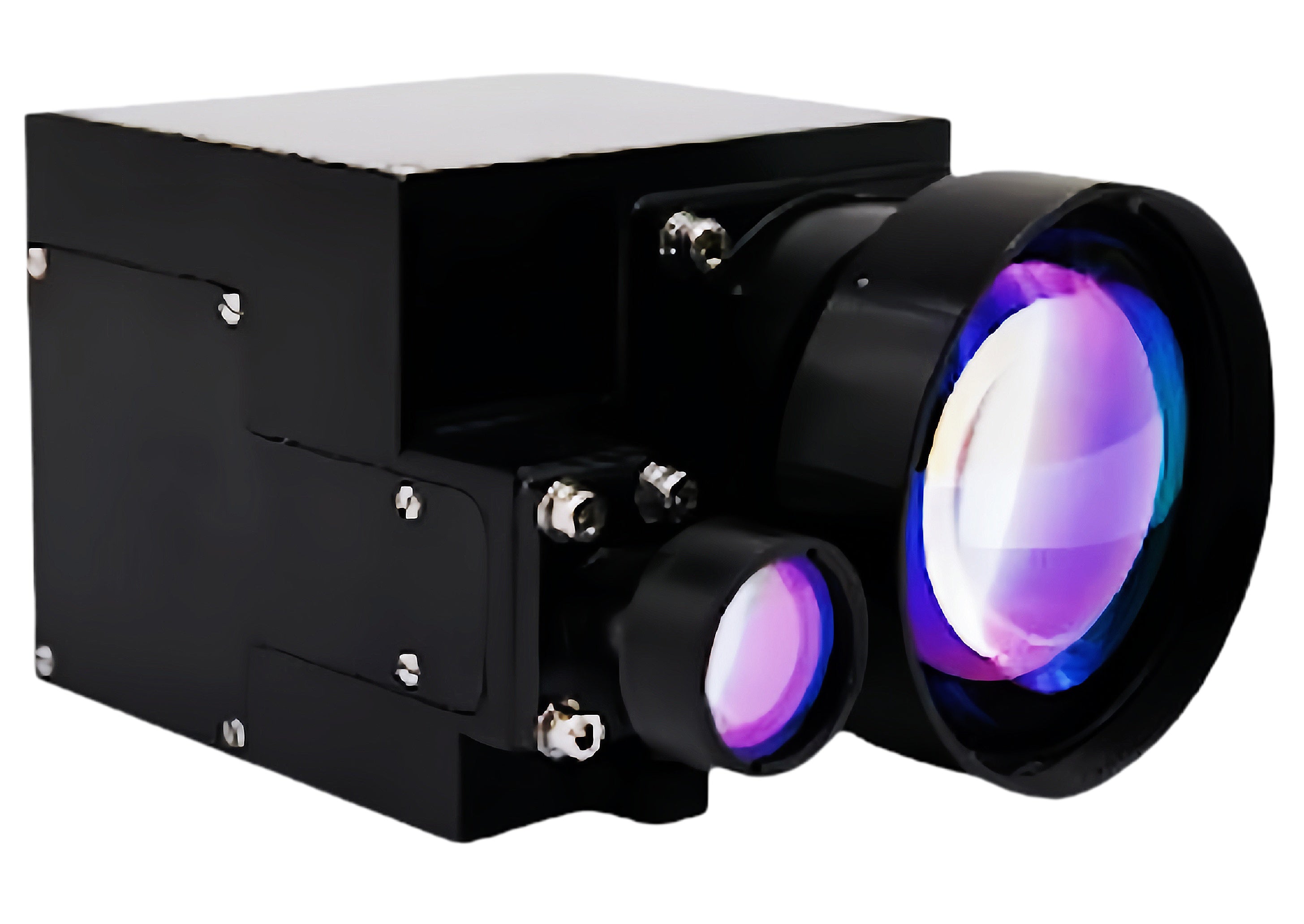

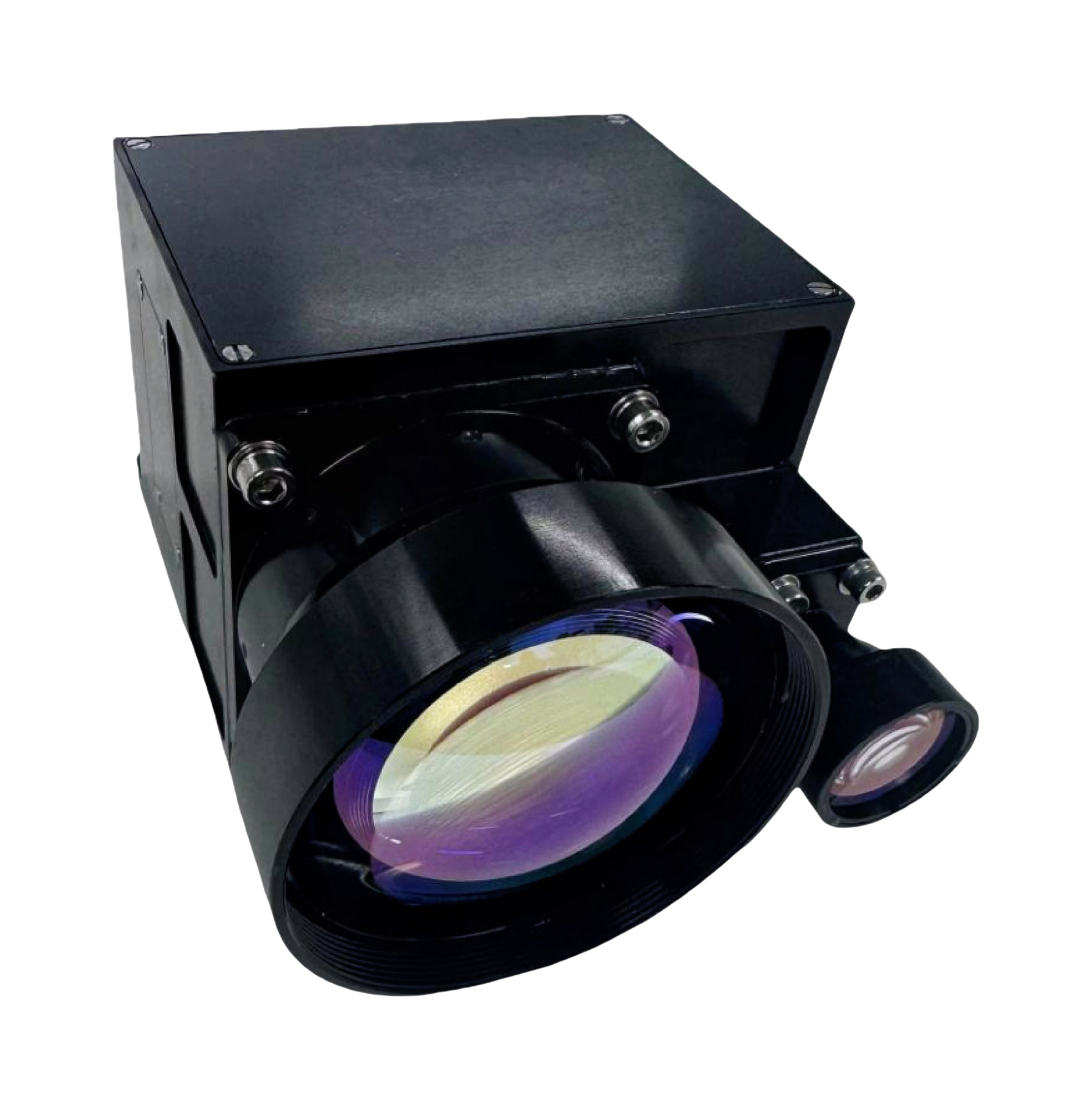

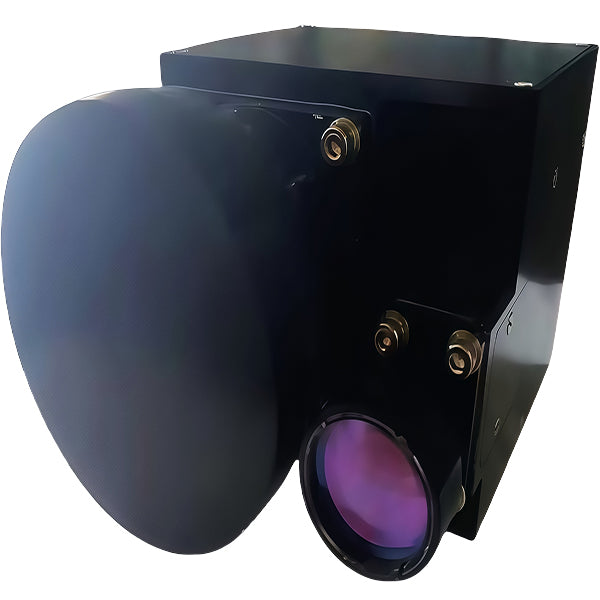

Laser Rangefinder 1535 nm LRFB20000HC
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| maximum target distance | 20000 m |
| minimum detection range | 100m |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ±3m |
| laser rangefinder operating wavelength | 1535nm ± 5nm |
| laser rangefinder peak power | 0.1667 MW |
| laser rangefinder ranging range | ≥100m-17000m (visibility ≥23 km, 2.3m × 4.6m vehicle or equivalent target panel,relative humidity ≤60%，target reflectivity 0.3); ≥100m-20000m (23 km visibility; target reflectivity 0.3; relative humidity ≤ 60%) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Avg≤10W |
| power supply | DV 22 - 34V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +60°C |
| temperature storage | -55°C to +70°C |

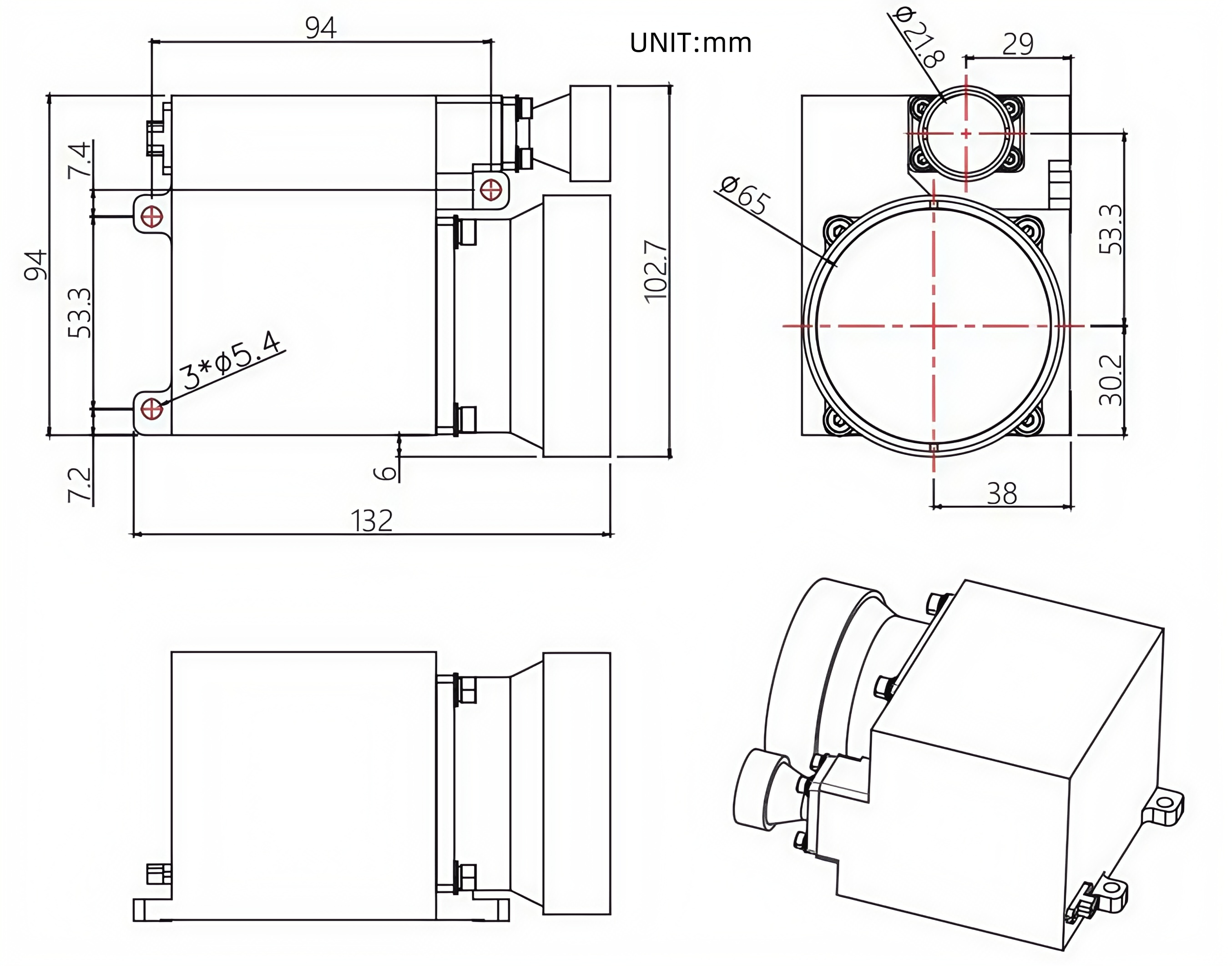

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 76 mm |
| product length | 132 mm |
| product weight | ≤0.84 kg |
| product width | 102.7 mm |
| volume | ≤132 x 102.7 x 76 mm |
