LRFB5000DD

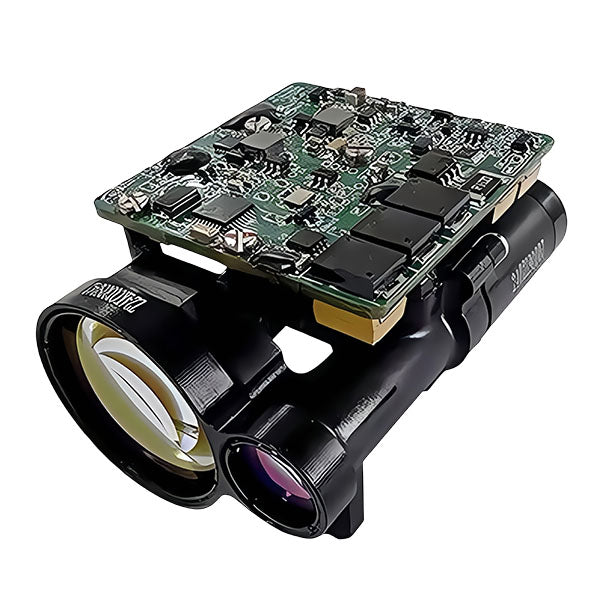

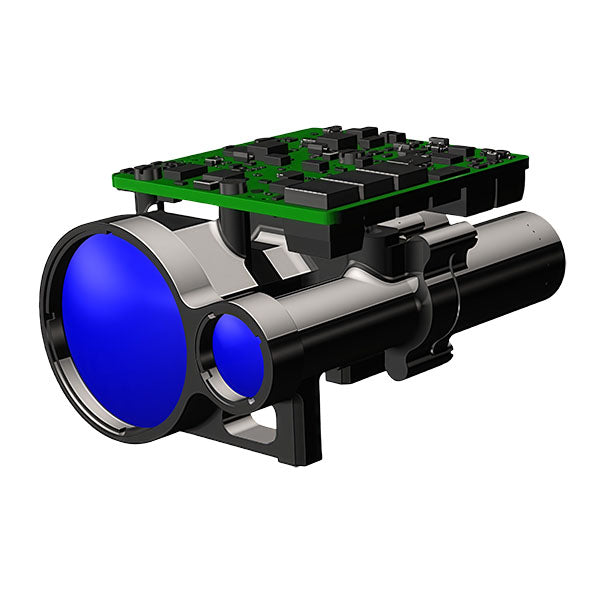

Laser Rangefinder 1535 nm LRFB5000DD
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| maximum target distance | 5000 m |
| minimum detection range | 20m |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ±1m |
| laser rangefinder operating wavelength | 1535nm ± 10nm |
| laser rangefinder peak power | 0.04 MW |
| laser rangefinder ranging range | 20m - 5000m |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Avg≤2W; Peak≤5W |
| power supply | DC 10 - 14V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS422 / TTL(Optional) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +70°C |
| temperature storage | -55°C to +75°C |

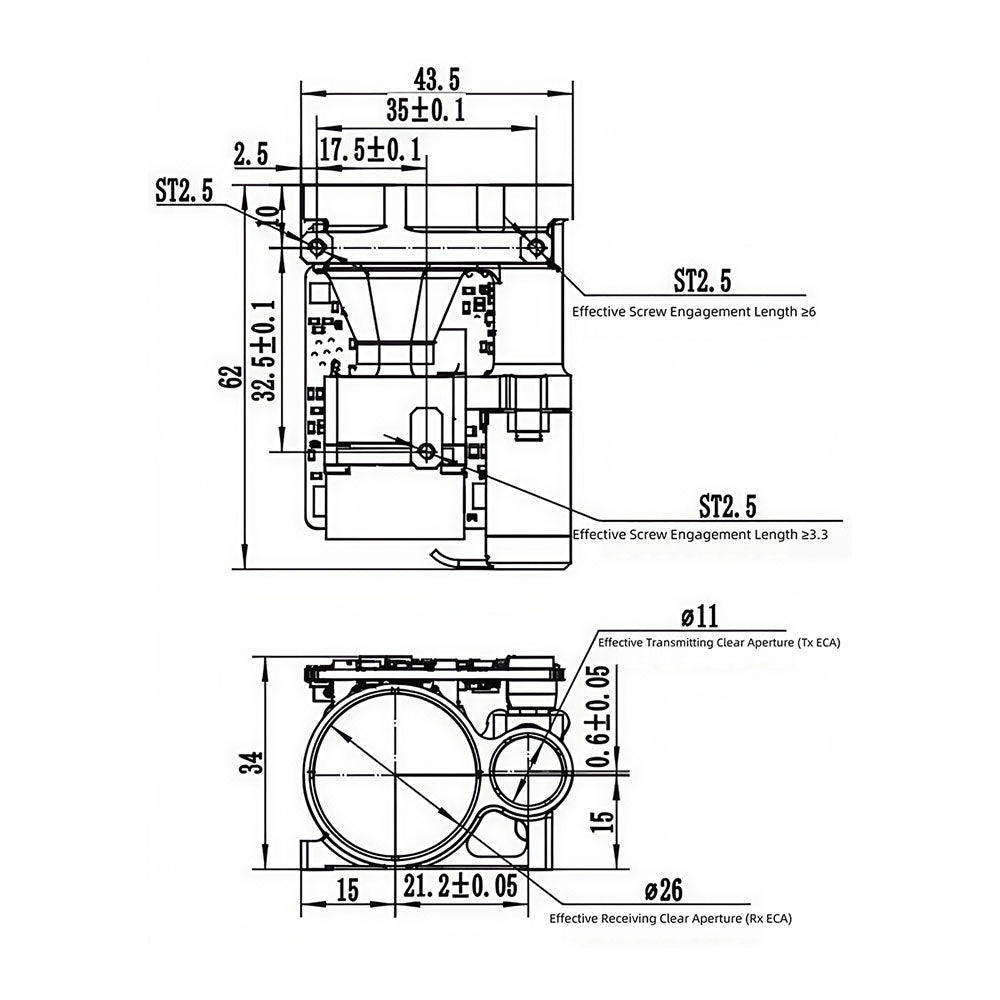

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 34 mm |
| product length | 62 mm |
| product weight | ≤0.08 kg |
| product width | 43.5 mm |
| volume | ≤62 x 43.5.5 x 34 mm |
