LRFA1500AB

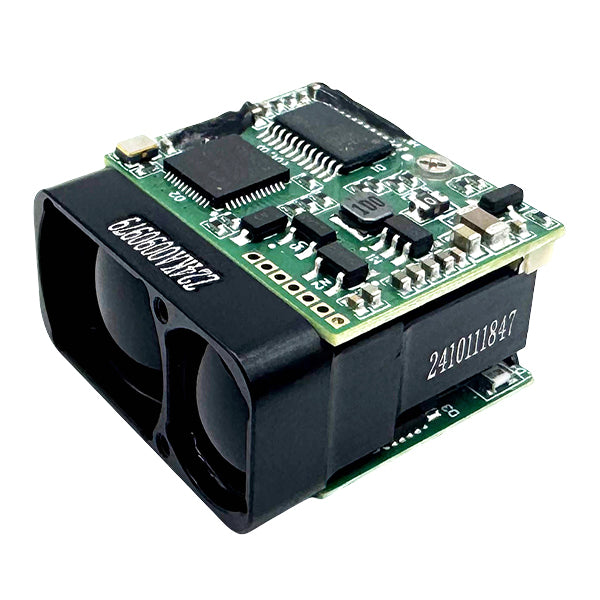

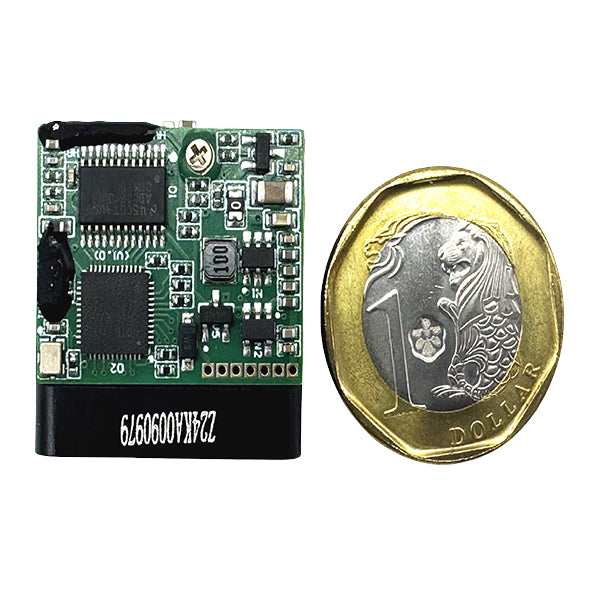

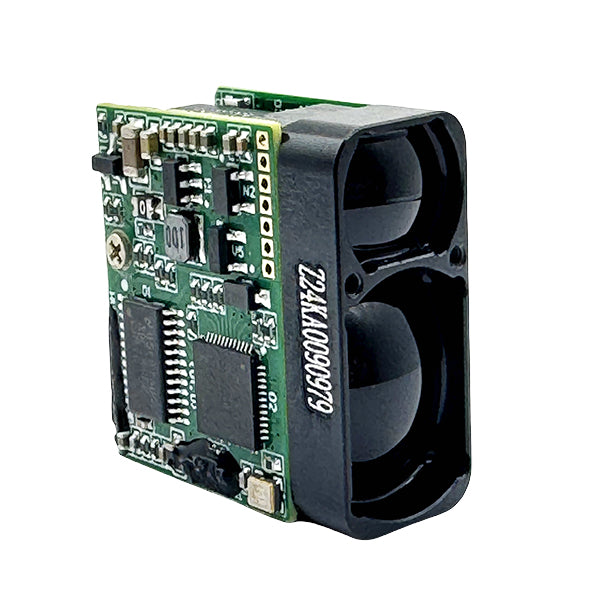

Laser Rangefinder 905 nm LRFA1500AB
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| maximum target distance | 1500 m |
| minimum detection range | 5m |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ≤±1m |
| laser rangefinder operating wavelength | 905nm±5nm |
| laser rangefinder peak power | 0.000065 MW |
| laser rangefinder ranging range | ≥5m-1500m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Standby≤1W; Avg≤1.5W |
| power supply | DC 3 - 5V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -20°C to +60°C |
| temperature storage | -30°C to +60°C |

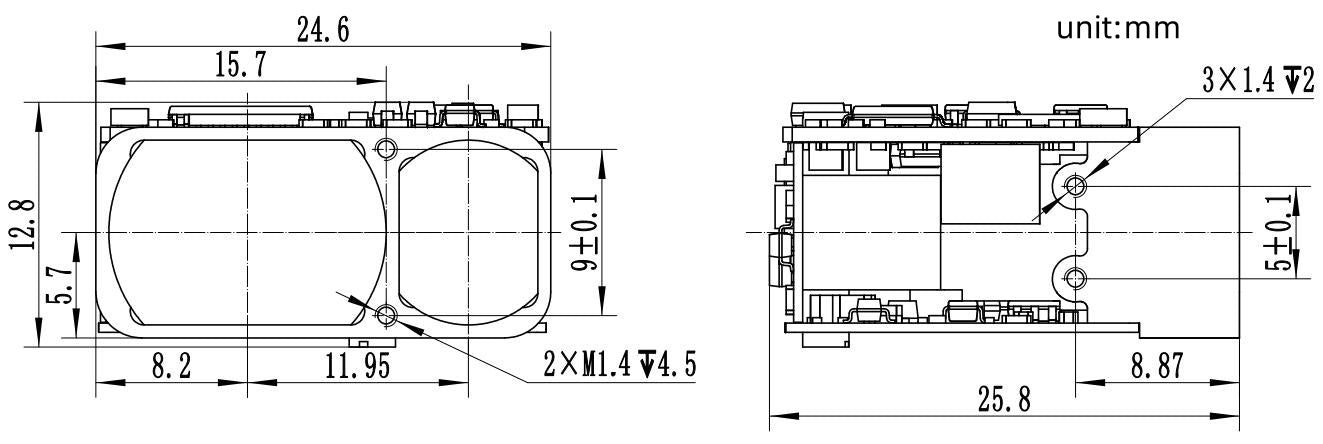

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.8 mm |
| product length | 25.8 mm |
| product weight | ≤0.01 kg |
| product width | 24.6 mm |
| volume | ≤25.8 x 24.6 x 12.8 mm |
