LRFA2000AB

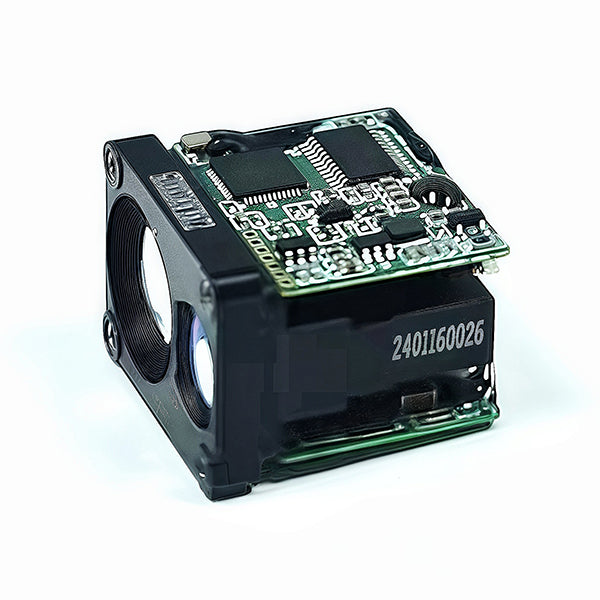

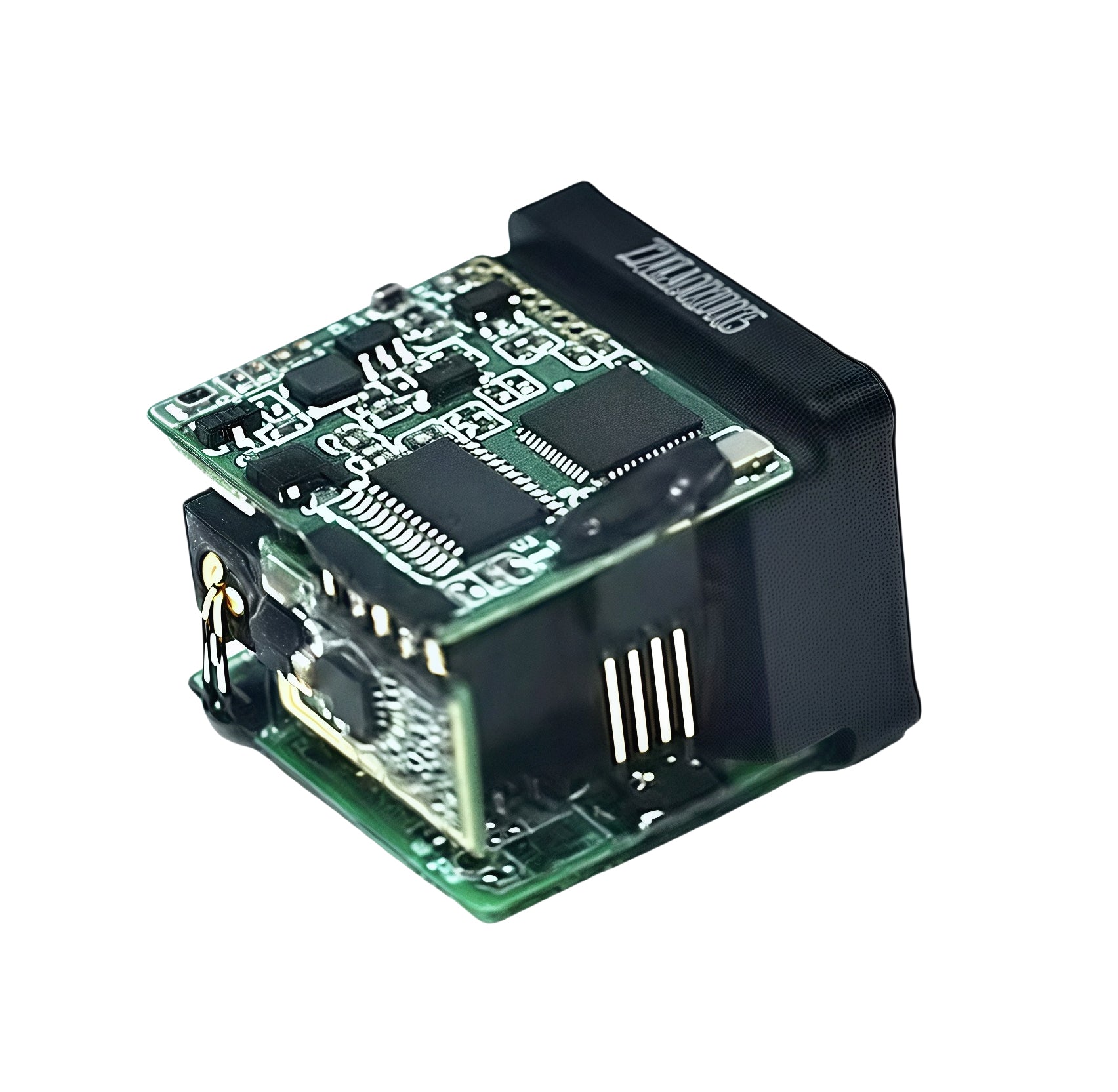

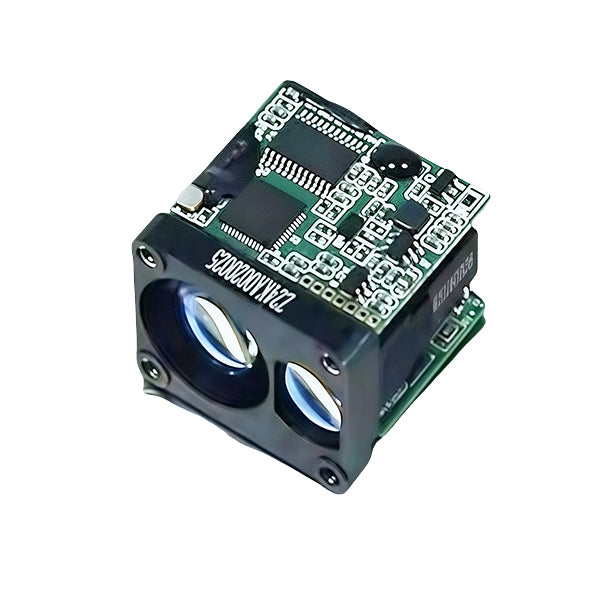

Laser Rangefinder 905 nm LRFA2000AB
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| maximum target distance | 2000 m |
| minimum detection range | 5m |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ≤±1(≤400m); ≤±(L×0.3%) (>400m) |
| laser rangefinder operating wavelength | 905nm±5nm |
| laser rangefinder peak power | 0.000065 MW |
| laser rangefinder ranging range | ≥5m-2000m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Avg≤1W |
| power supply | DC 3 - 5V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -20°C to +60°C |
| temperature storage | -30°C to +70°C |

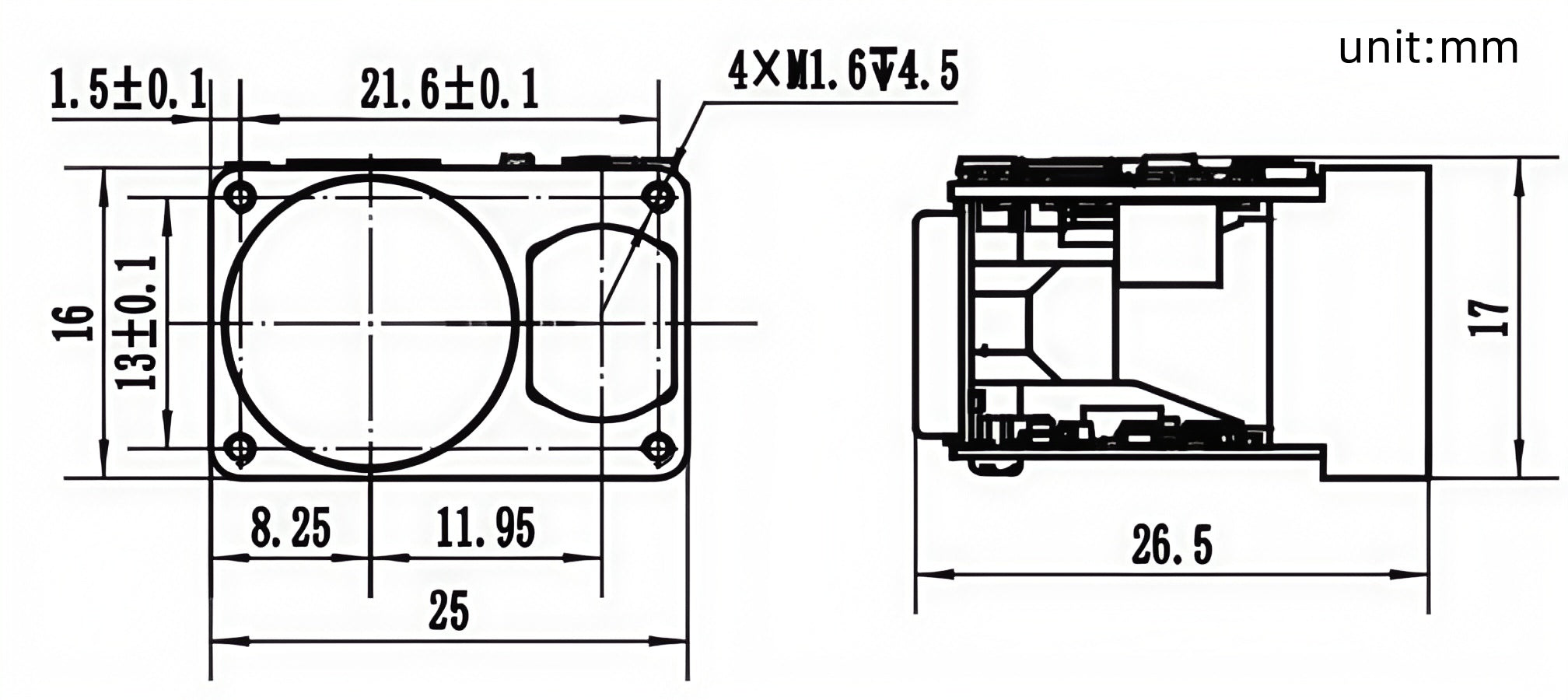

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 16 mm |
| product length | 26.5 mm |
| product weight | ≤0.013 kg |
| product width | 25 mm |
| volume | ≤26.5 x 25 x16 mm |
