LRFB6000EC

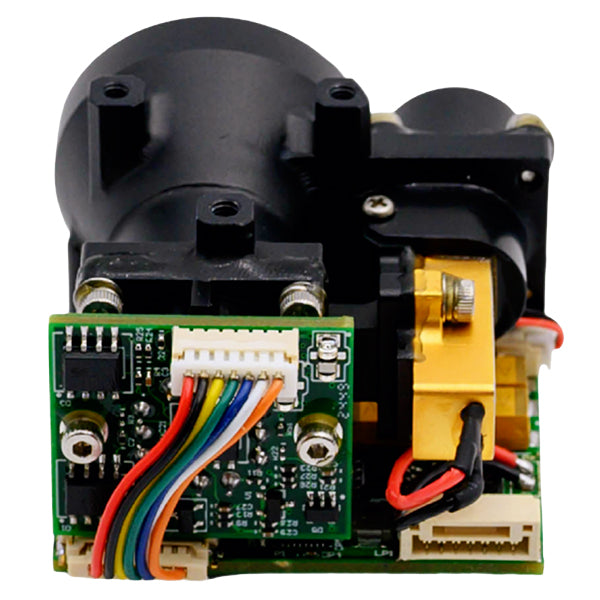

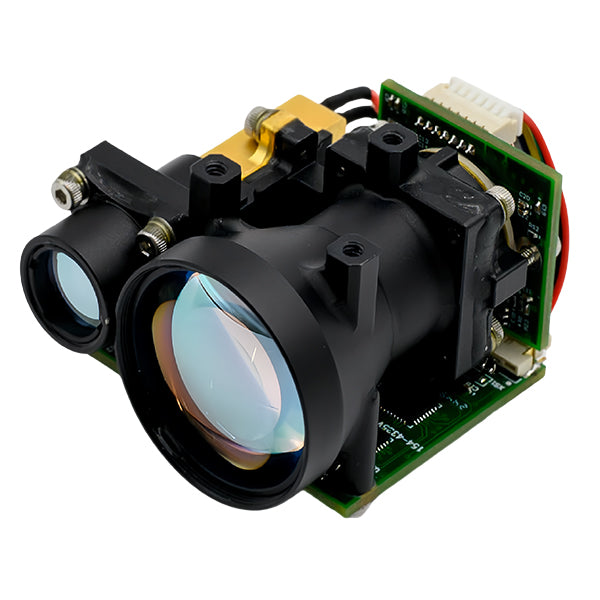

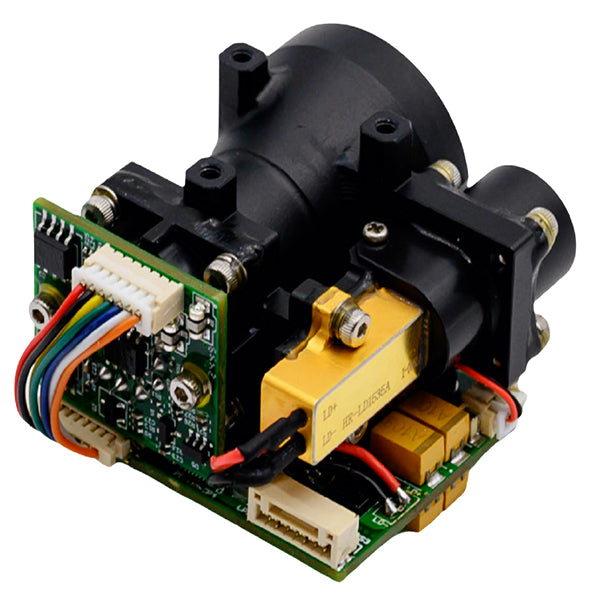

Laser Rangefinder1535 nm LRFB6000EC
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| maximum target distance | 6000 m |
| minimum detection range | 30m |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ≤±1m |
| laser rangefinder operating wavelength | 1535nm ± 5nm |
| laser rangefinder peak power | 0.04 MW |
| laser rangefinder ranging range | ≥30m-6000m |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Standby1≤1.5W (No Laser Emission at Power-On); Standby2≤3.5W (Continuous Ranging at 10Hz); Peak≤8W |
| power supply | DC 9 - 15V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70°C |

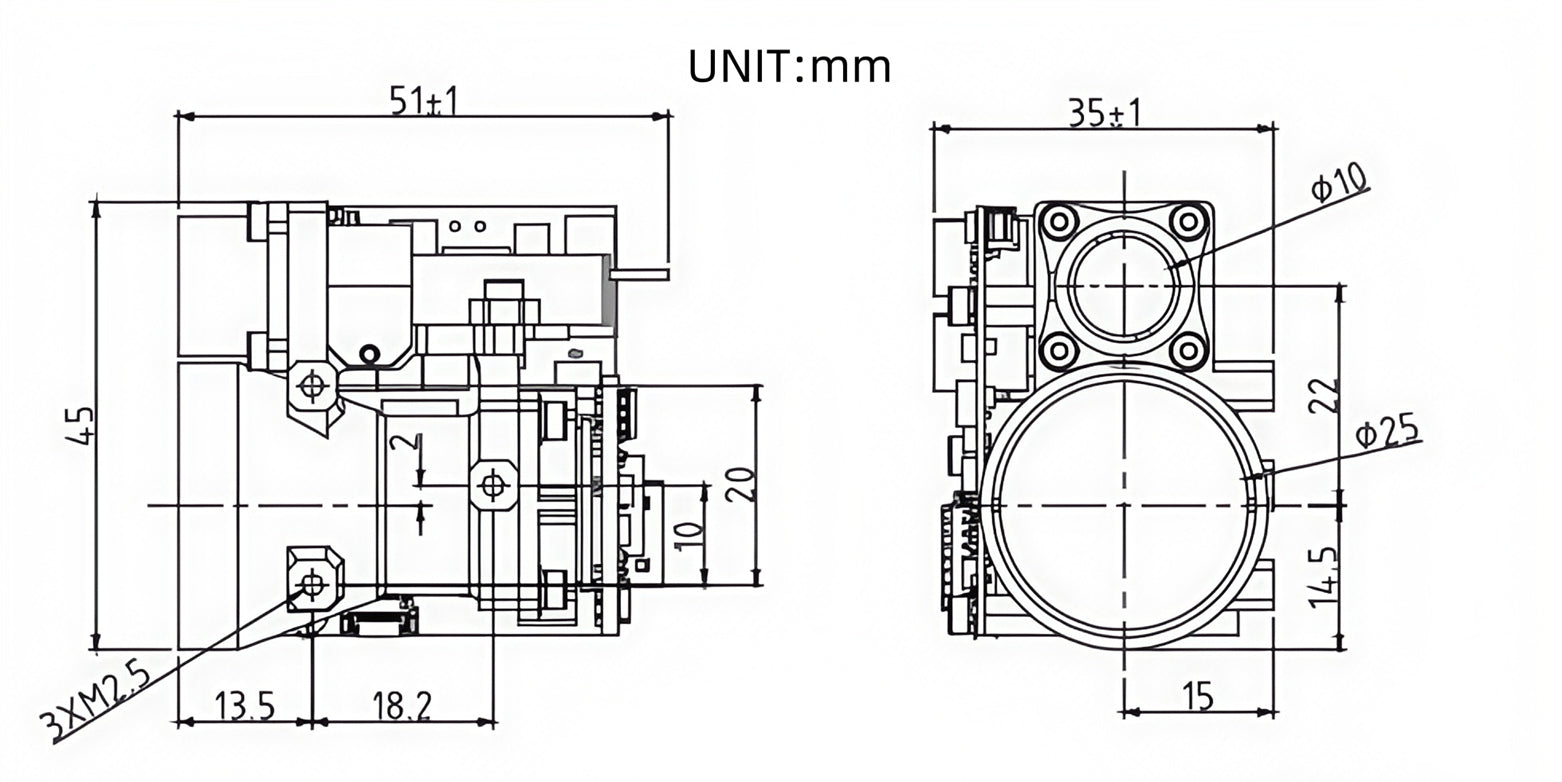

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 45 mm |
| product length | 51 mm |
| product weight | ≤0.075g |
| product width | 35 mm |
| volume | ≤51 x 35 x 45 mm |
