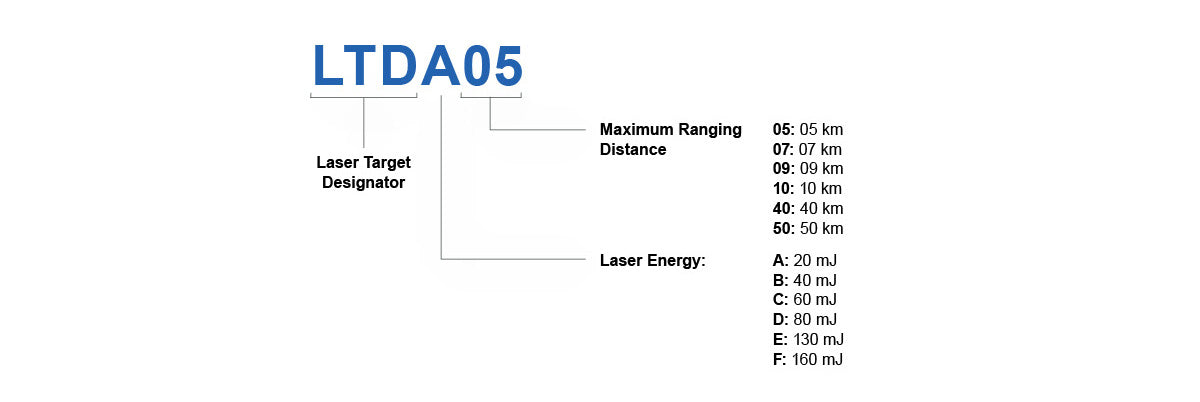

LTDA05

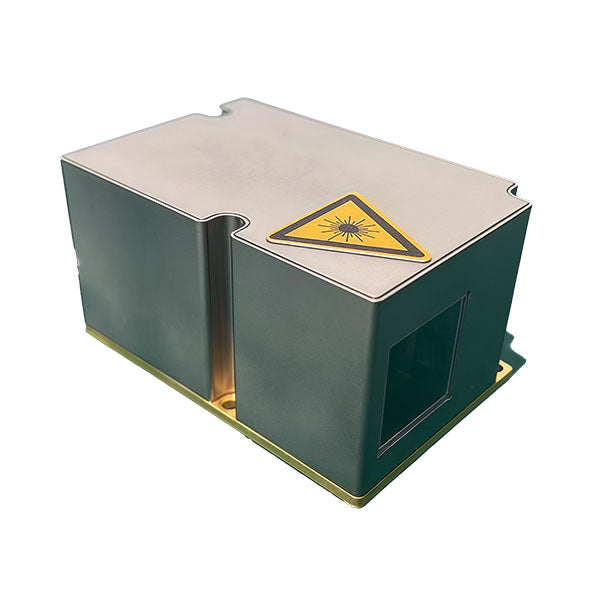

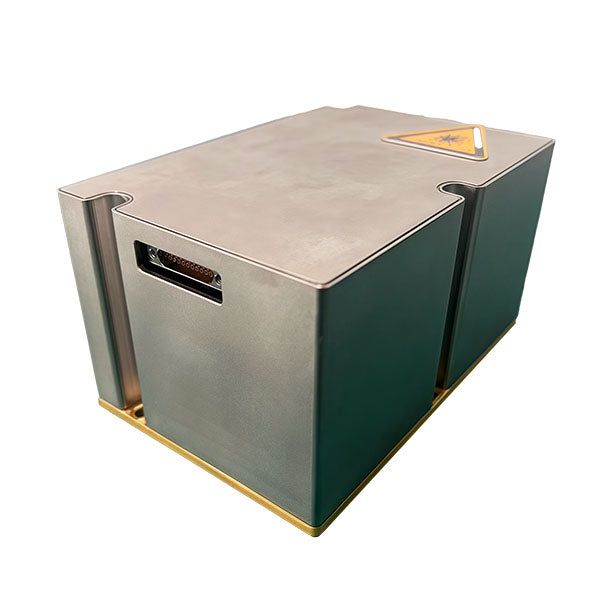

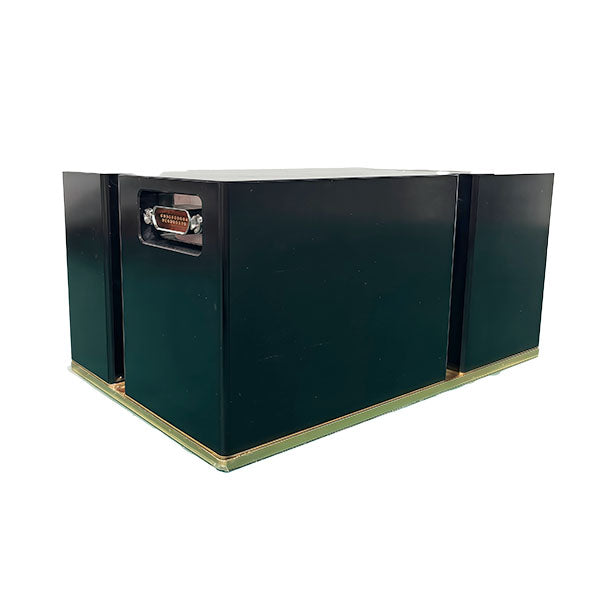

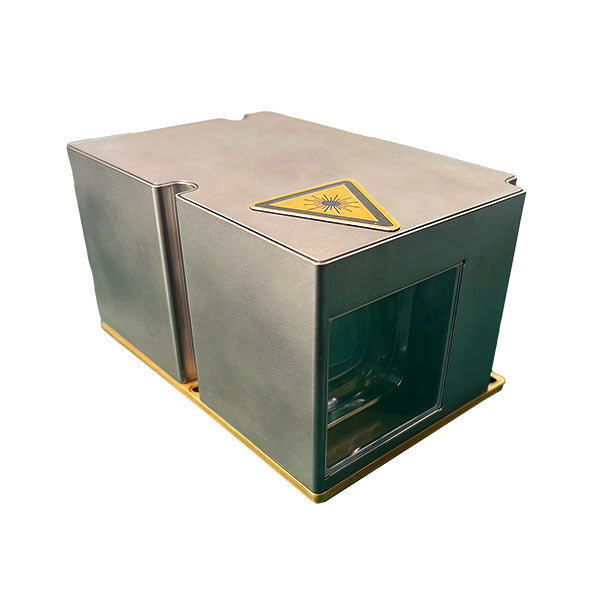

Laser Target Designator 20mJ, 5000m
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| maximum ranging distance | 5000 m |
| product family | Laser Target Designator |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| laser energy | 20mJ |
| laser target designator accuracy | ± 2m |
| laser target designator illumination frequency | 20Hz |
| laser target designator optical axis instability | ≤0.03 mrad (1 sigma, per illumination cycle) |
| laser target designator ranging range | ≥200 - 5000m (Visibility ≥10km, 2.3m x 2.3m target, target reflectivity ≥20%) (Ranging shall not be performed on targets within 100m) |
| laser target designator Wavelength | 1064±3nm |
| laser target designator beam divergence | ≤0.5 mrad |
| laser target designator continuous ranging duration | 5min(1Hz), 2min(5Hz): 1Hz, ≤5min, rest≥5min; 5Hz, ≤2min, rest≥2min; |
| laser target designator illumination duration | Single-Shot: Single cycle≥25s (interval: ≤15s, 8 cycles); Rapid-Shot: Single cycle: ≥60s (interval: 60s, 2 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes. |
| laser target designator illumination range | ≥200m - 2000m |
| laser target designator peak power | 2 MW |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Avg ≤15W; Standby ≤5W; Peak Current ≤3A |
| power supply | DC 22 - 32V (typ 28V) |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS-422 (Configurable RS232 & TTL Interfaces) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +60°C |
| temperature storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 52 mm |
| product length | 88 mm |
| product weight | 0.5 kg |
| product width | 60 mm |
| volume | 88 x 60 x 52 mm |
