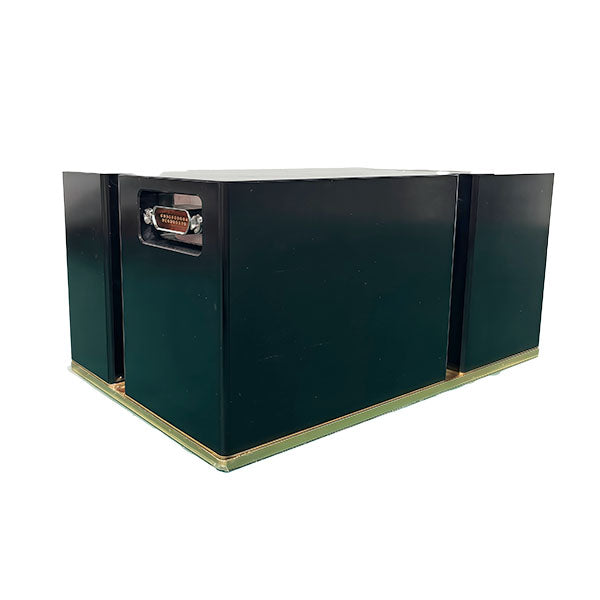

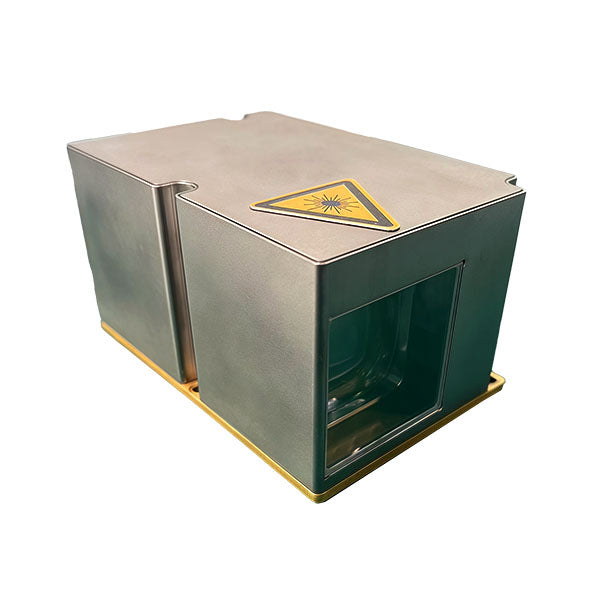

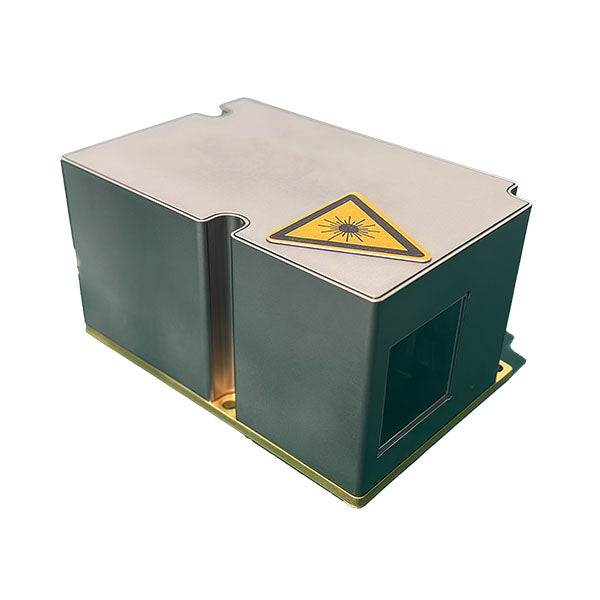

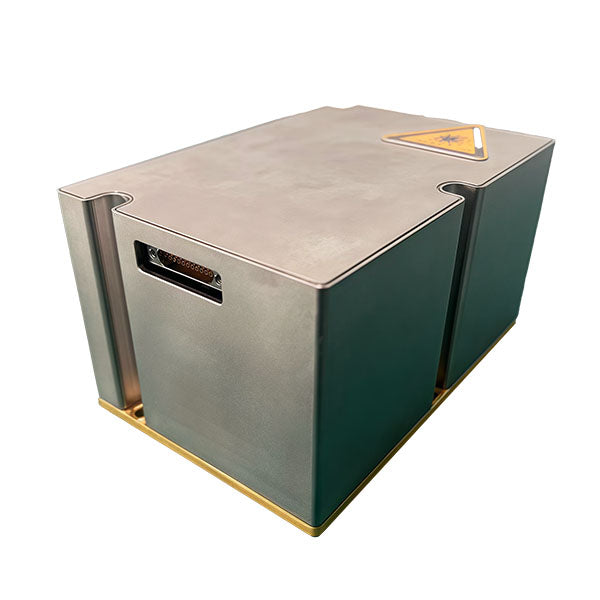

Name: Laser Target Designator 80mJ, 10000m
Brand: AeroBot Intelligence
SKU: LTDD10
Price: 141800.00 USD
Availability: InStock

RF SPECIFICATIONS
laser energy	80mJ
laser target designator accuracy	± 2m
laser target designator illumination frequency	20Hz
laser target designator optical axis instability	≤0.03 mrad (1 sigma, per illumination cycle)
laser target designator ranging range	≥200 - 10000m (Visibility ≥10km, 2.3m x 2.3m target, target reflectivity ≥20%) (Ranging shall not be performed on targets within 100m)
laser target designator Wavelength	1064±3nm
laser target designator beam divergence	≤0.3 mrad
laser target designator continuous ranging duration	5min(1Hz), 2min(5Hz): 1Hz, ≤5min, rest≥5min; 5Hz, ≤2min, rest≥2min;
laser target designator illumination duration	Single-Shot: Single cycle≥25s (interval: ≤15s, 8 cycles); Rapid-Shot: Single cycle: ≥60s (interval: 60s, 2 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes.
laser target designator illumination range	≥200m - 8000m
laser target designator peak power	8 MW

ELECTRICAL SPECIFICATIONS
power consumption	Avg ≤45W; Standby ≤5W; Peak Current ≤4A
power supply	DC 22 - 32V (typ 28V)

INTERFACE SPECIFICATIONS
external interface communication interface	RS-422 (Configurable RS232 & TTL Interfaces)

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40°C to +60°C
temperature storage	-55°C to +70°C

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	9013200093
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1
Dangerous Goods	-
Unit Package Dimensions	370 x 240 x 300 mm
Unit Package Weight	7 kg
Total Aluminium Content	-
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	-
