LUMRD030-03
LUMENIX 32-Line Spherical LiDAR
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
Overview

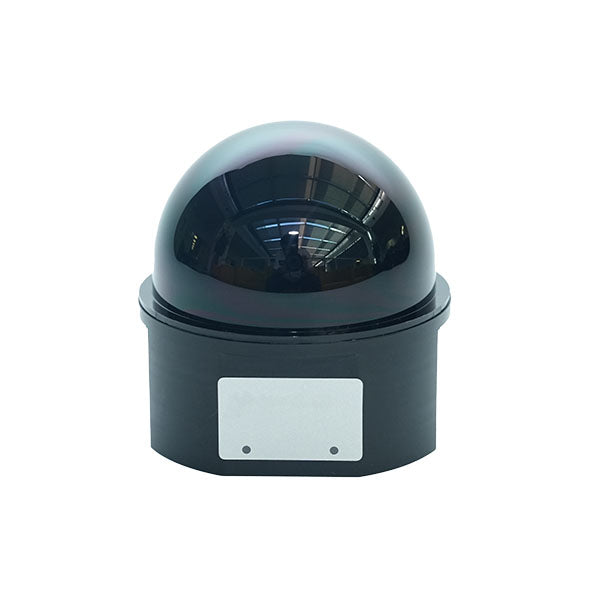

LUMENIX 32-Line Spherical LiDAR
63.5 °× 360 ° FOV, 192K point frequency, and 30 meters @ 10% ranging distance make the robot more flexible and agile in complex environments, adapting to various application scenarios. Linear scanning method simplifies the difficulty of further algorithm development for customers, and improves the scalability and customization ability of the system.
| KEY SPECIFICATIONS | |
|---|---|
| data rates | 192000 points/sec |
| horizontal FOV | 360° |
| horizontal resolution | 0.6° |
| laser wavelength | 905nm |
| number of channels | 32 |
| operating range | 30m@10% Reflectivity |
| ranging accuracy | ±3cm |
| ranging distance | 0.3m - 50m |
| scanning frequency | 10Hz |
| vertical FOV | 63.5°（ -12.76°~50.76°） |
| vertical resolution | 2° |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | 6W |
| INTERFACE SPECIFICATIONS | |
|---|---|
| communication interface | Ethernet |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP67 |
| laser safety | Class I (eye safety) |
| temperature operational | -20°C to +60°C |
| temperature storage | -40℃ - 85℃ |

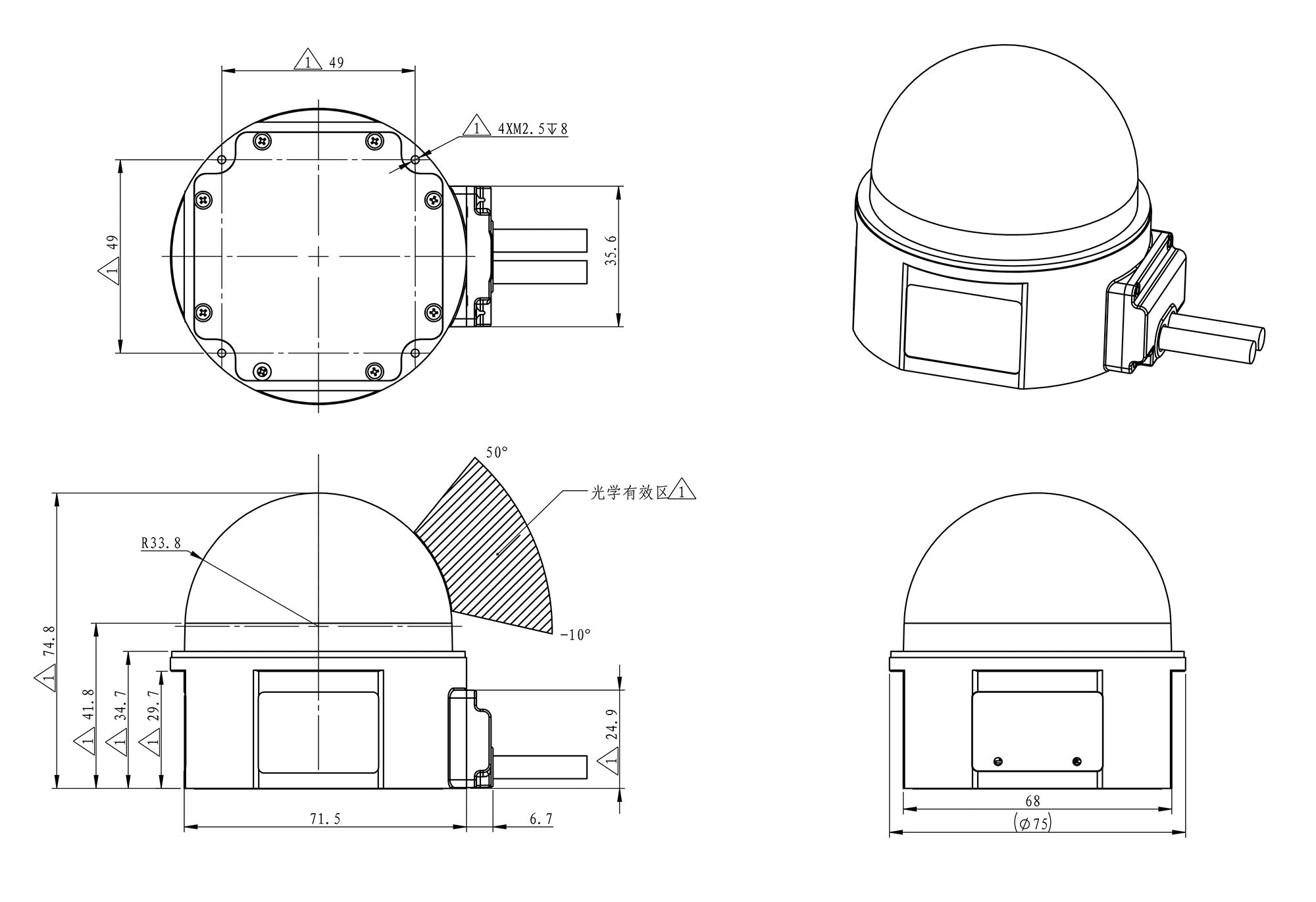

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 75 mm |
| product length | 75 mm |
| product weight | 0.5 kg |
| product width | 75 mm |
