LUMVB050-05
LUMENIX Fully Solid-State Blind-Spot LIDAR
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
Overview

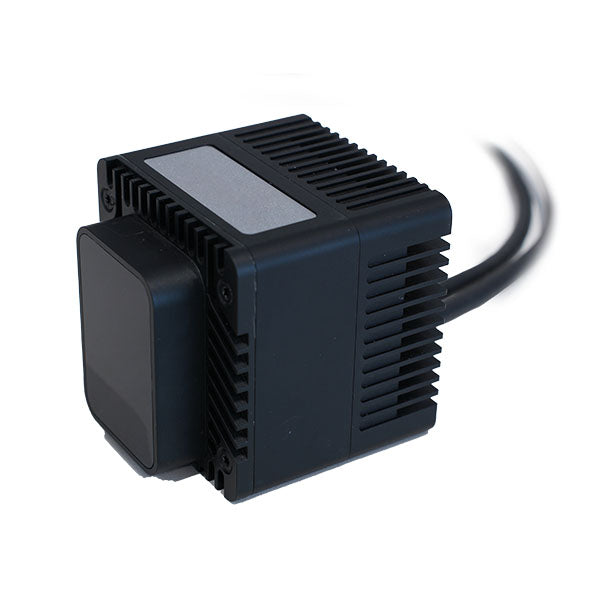

LUMENIX Fully Solid-State Blind-Spot LIDAR
LUMVB050-05 is a blind-spot LiDAR with a compact size and large FOV, providing real-time per-ception of small objects, close range road participants, and others
| KEY SPECIFICATIONS | |
|---|---|
| data rates | 420000 points/sec |
| horizontal FOV | 140° |
| horizontal resolution | 0.5° |
| laser wavelength | 940nm |
| number of channels | 150 |
| operating range | 50m (30@10% Reflectivity) |
| ranging accuracy | ±5cm |
| ranging distance | 50m (30@10% Reflectivity) |
| scanning frequency | 10 Hz |
| vertical FOV | 70° |
| vertical resolution | 0.5° |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | 12W |
| INTERFACE SPECIFICATIONS | |
|---|---|
| communication interface | Ethernet |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP67 |
| laser safety | Class I (eye safety) |
| temperature operational | -40°C to +85°C |
| temperature storage | -40℃ - 90℃ |

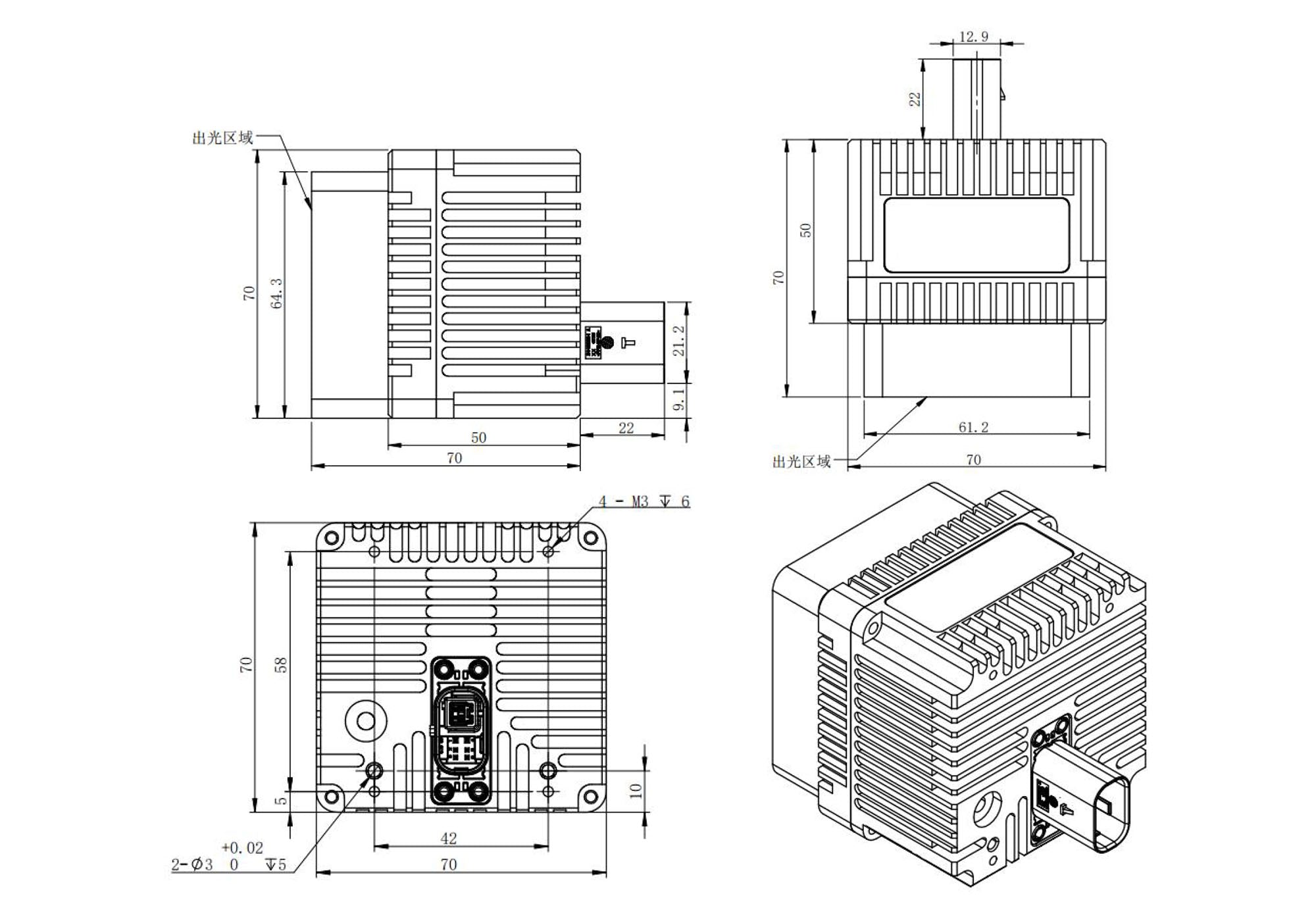

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 70 mm |
| product length | 70 mm |
| product weight | 0.5 kg |
| product width | 70 mm |
