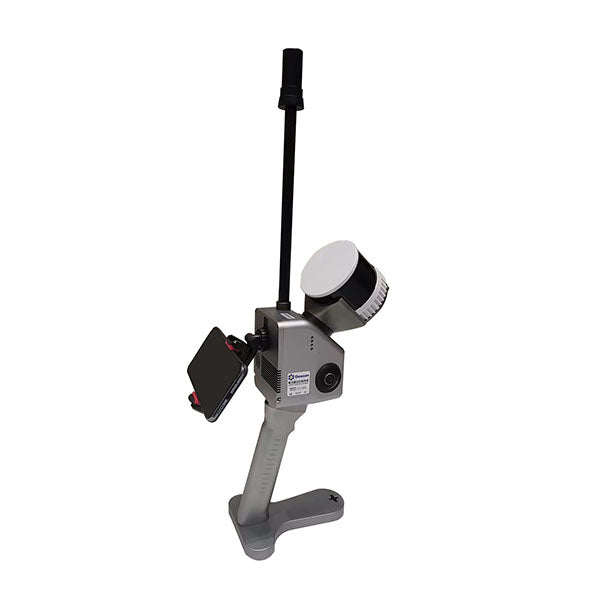

LUMENIX Handheld SLAM LiDAR Scanning Systems 300m
  • LUMENIX Handheld SLAM LiDAR Scanning Systems 300m

LUMID300-05E

LUMENIX Handheld SLAM LiDAR Scanning Systems 300m

Please sign in or create an account to view the price and availability.

Sign In / Create Account
LUMENIX Handheld SLAM LiDAR Scanning Systems 300m


KEY SPECIFICATIONS
accuracy absolute ≤5 cm
accuracy relative ≤1 cm
battery capacity 11600 mAh
battery duration 2h
camera effective pixel 2*20 MP
camera scanning mode SHARE
laser data Single echo, 1,920,000 Points/Sec
laser horizontal FOV 360°
laser measuring range 300m
laser range accuracy ±1.5cm
laser scanning mode 32-Channel
laser vertical FOV 270°
mapping mode SLAM; RTK-SLAM; PPK-SLAM
operating time 2 - 2.5h
POS GNSS signal type GPS L1/L2; GLO L1/L2; GAL E1/E5b; BDS B1/B3/B2a (Supports BeiDou-only Mode)
POS heading accuracy 0.040°
POS pitch accuracy 0.015°
POS positioning accuracy horizontal ±0.02m
POS positioning accuracy vertical ±0.03m
POS roll accuracy 0.015°
POS update rate 200 Hz
product family LUMENIX Industrial
response time real-time
Product Revision A
ELECTRICAL SPECIFICATIONS
operating voltage 12 - 18V
power consumption <25 W
INTERFACE SPECIFICATIONS
point cloud density The density of points can be adjusted by changing the walking speed.
processing storage Point Cloud Creater
real-time point cloud Support
software point cloud automata (Optional) PCA software - point cloud classification and post processing software
software point cloud creater Perpetual license - Self-developed PointCloud Creater software
storage 128GB MicroSD Card
supported platform Handheld/Backpack/Aerial/Other DIY options available
ENVIRONMENTAL SPECIFICATIONS
temperature operational -20°C to 55°C
temperature storage -40°C to 70°C
PHYSICAL SPECIFICATIONS
material Aluminum Alloy Body
product height 394 mm
product length 153 mm
product weight 1.7 kg
product width 930 mm
