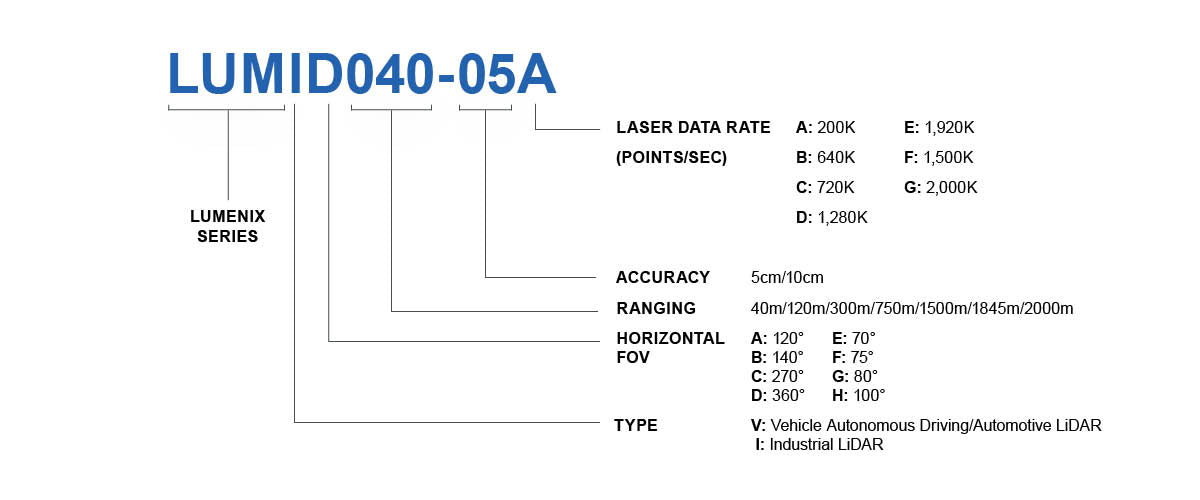

LUMID040-05A

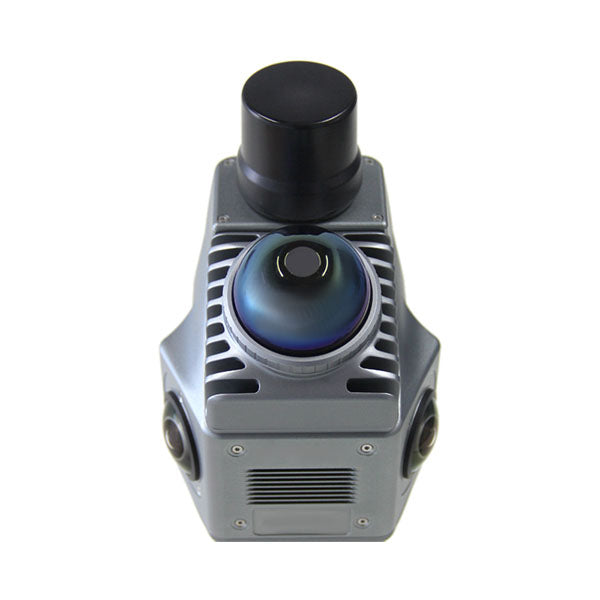

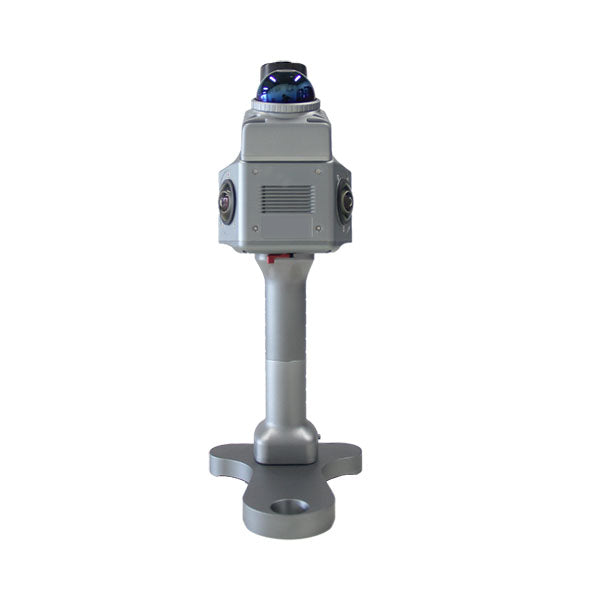

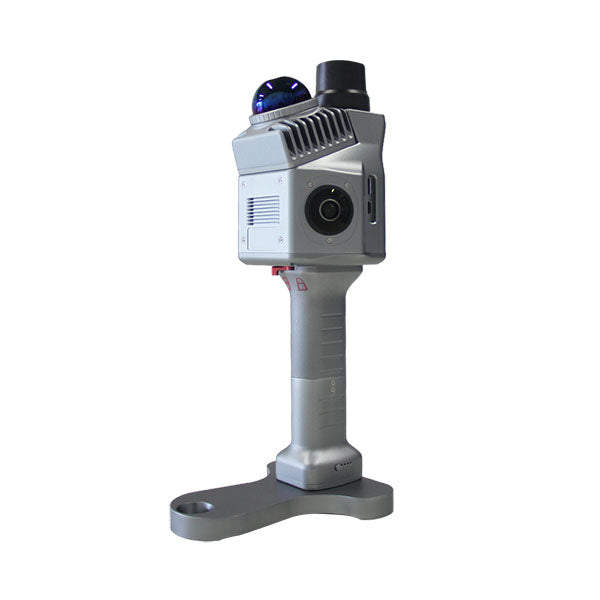

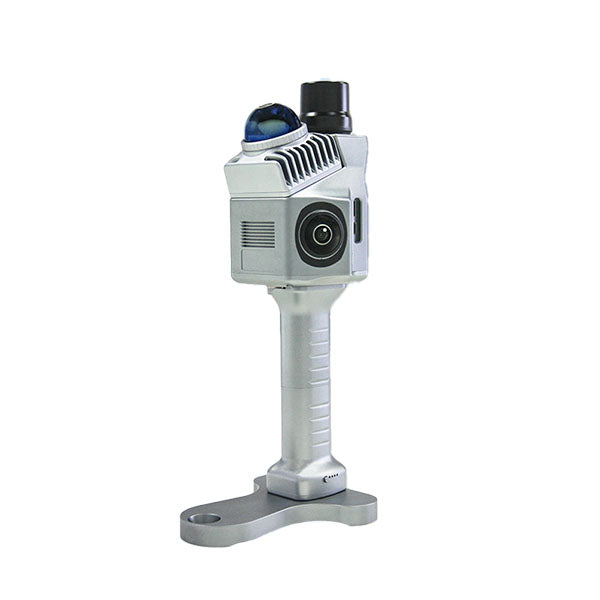

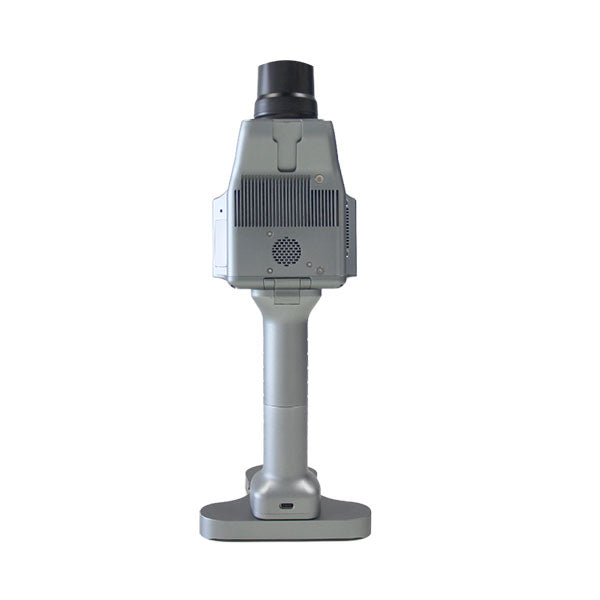

LUMENIX Handheld SLAM LiDAR Scanning Systems 40m
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| accuracy absolute | ≤5 cm |
| accuracy relative | ≤1 cm |
| battery capacity | 11600 mAh |
| battery duration | 2h |
| camera effective pixel | 2*20 MP |
| camera scanning mode | SHARE |
| laser data | Single echo, 200,000 Points/Sec |
| laser horizontal FOV | 360° |
| laser measuring range | 40m |
| laser range accuracy | ±1.5cm |
| laser scanning mode | Hybrid Solid-State Laser Radar |
| laser vertical FOV | -7° - 52° |
| mapping mode | SLAM; RTK-SLAM; PPK-SLAM |
| operating time | 2 - 2.5h |
| POS GNSS signal type | GPS L1/L2; GLO L1/L2; GAL E1/E5b; BDS B1/B3/B2a (Supports BeiDou-only Mode) |
| POS heading accuracy | 0.040° |
| POS pitch accuracy | 0.015° |
| POS positioning accuracy horizontal | ±0.02m |
| POS positioning accuracy vertical | ±0.03m |
| POS roll accuracy | 0.015° |
| POS update rate | 200 Hz |
| product family | LUMENIX Industrial |
| response time | real-time |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| operating voltage | 12 - 20V |
| power consumption | <25 W |
| INTERFACE SPECIFICATIONS | |
|---|---|
| point cloud density | The density of points can be adjusted by changing the walking speed. |
| processing storage | Point Cloud Creater |
| real-time point cloud | Support |
| software point cloud automata | (Optional) PCA software - point cloud classification and post processing software |
| software point cloud creater | Perpetual license - Self-developed PointCloud Creater software |
| storage | 128GB MicroSD Card |
| supported platform | Handheld/Backpack/Other DIY options available |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -20°C to 55°C |
| temperature storage | -40°C to 70°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| material | Aluminum Alloy Body |
| product height | 324 mm |
| product length | 165 mm |
| product weight | 1 kg |
| product width | 120 mm |
