Overview

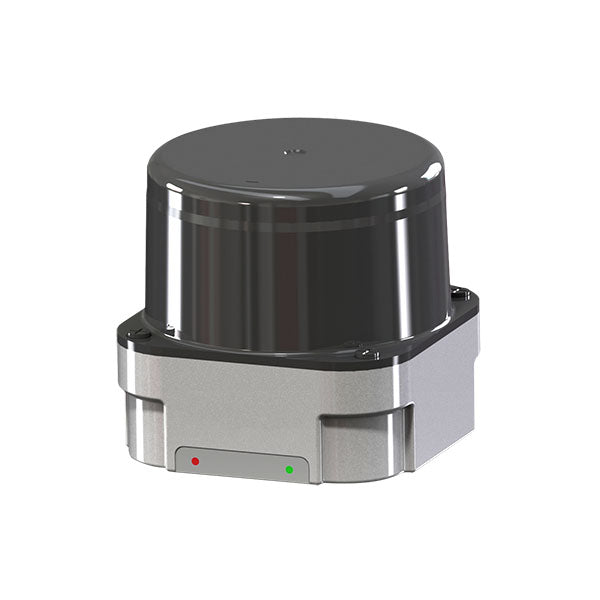

LUMENIX Long-range SLAM Navigation LiDAR
Makes AMR (Delivery + Cleaning) can drive in open road
With great environmental adaptability for obstacle avoidance, With high precision ranging capability for Corner case, With IP67 protection level which is suitable for outdoor scenarios
| KEY SPECIFICATIONS | |
|---|---|
| data rates | 108000 points/sec |
| horizontal FOV | 360° |
| horizontal resolution | 0.1°/0.067°/0.033° |
| laser wavelength | 905nm |
| number of channels | 1 |
| operating range | 50m (20m@10% Reflectivity) |
| ranging accuracy | ±2cm |
| ranging distance | 50m (20m@10%) |
| response time | 67ms |
| scanning frequency | 30HZ/20HZ/10HZ |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | 4W |
| INTERFACE SPECIFICATIONS | |
|---|---|
| communication interface | Ethernet |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| electromagnetic compatibility | GB/T17626.2-2006; GB/T17626.4-2008 |
| IP rating | IP67 |
| laser safety | Class I (eye safety) |
| temperature operational | -20°C to +60°C |
| temperature storage | -25℃ - 85℃ |
| vibration resistance standard | GB/T28046.3-2011 |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 62 mm |
| product length | 65 mm |
| product weight | 0.3 kg |
| product width | 65 mm |
