OPT102C25

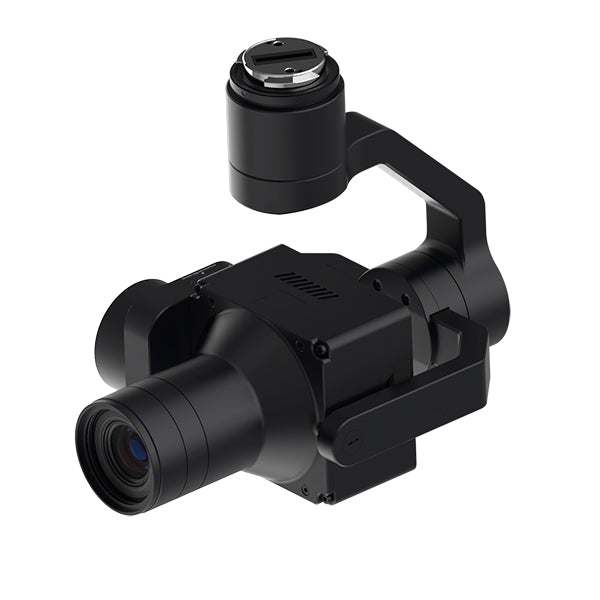

Medium Format Single Lens Aerial Surveying Equipment - 102MP
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| focal length | 50 mm |
| ISO range | 100-6400 |
| lens appreture | F5.6 |
| min exposure interval | 0.36 seconds standard, 0.5 seconds super fine |
| number of lens | 1 PCs |
| shutter speed range | 1/100s-1/2000s |
| total pixels | 102 MP |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power supply mode | Skyport/DC（12V-27V） |
| INTERFACE SPECIFICATIONS | |
|---|---|
| adjustment method | RC/SerialPort/NetworkPort/USB |
| data download | Skyscanner |
| data link connection | Type-C |
| data return method | SMB,FTP,NFS,support IP setting |
| max data transfer speed | ≥300MB/S |
| memory connection | USB3.0 |
| photo resolution high | 11648px |
| photo resolution wide | 8736px |
| protocol | RieboSDK;Mavlink4 |
| protocol function | SupportsAdjustingShutter, ISO,WhiteBalance, Contrast,Sharpness,EV,Saturation, image Quality,CustomFolders,CustomImageNames, |
| route planning | AeroMap |
| storage | 256 GB |
| trigger method | Skyport/Low-level/SerialPort/NetworkPort |
| video record | 4K@30FPS |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -30℃-65℃ |
| working humidity | ≤40℃95%RH |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 116 mm without gimball, 165 mm with gimball |
| product length | 75.6 without gimball, 185.6 mm with gimball |
| product weight no gimbal | 0.355 kg |
| product weight with gimbal | 0.844 kg |
| product width | 69.6 mm without gimball, 121.4 with gimball |
| sensor length | 43.8 mm |
| sensor width | 32.8 mm |
