ITM256

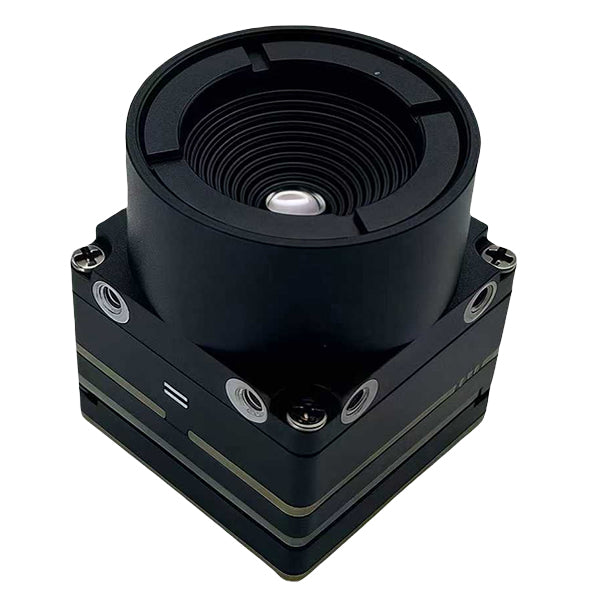

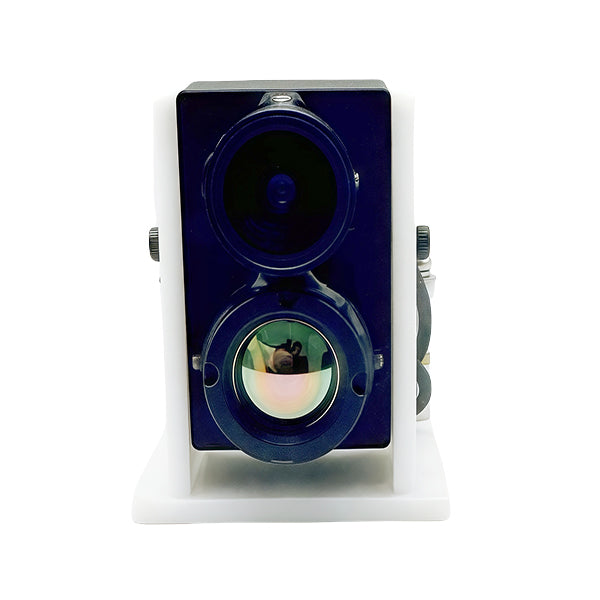

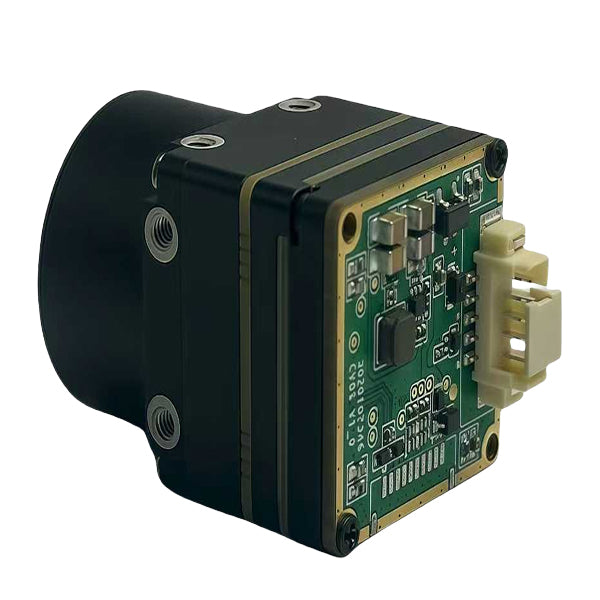

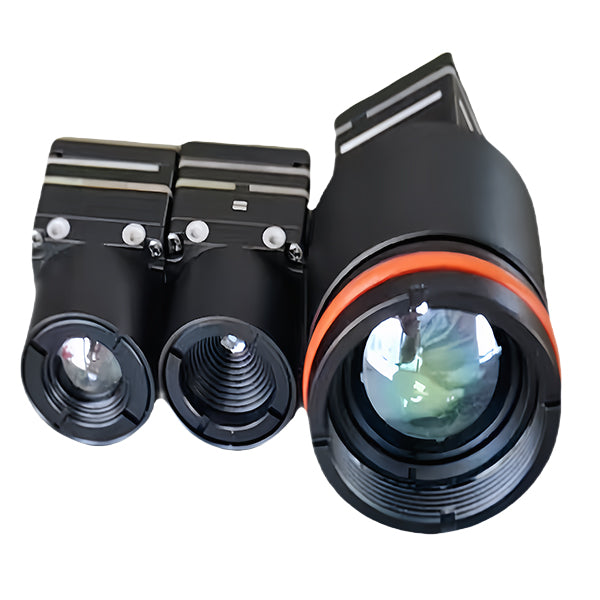

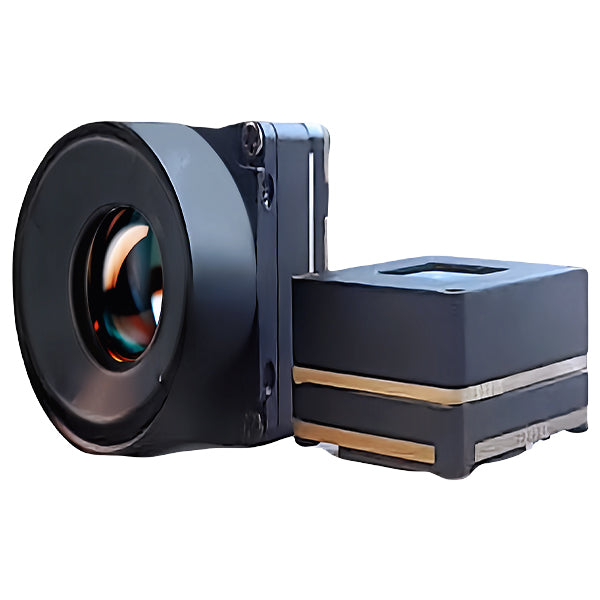

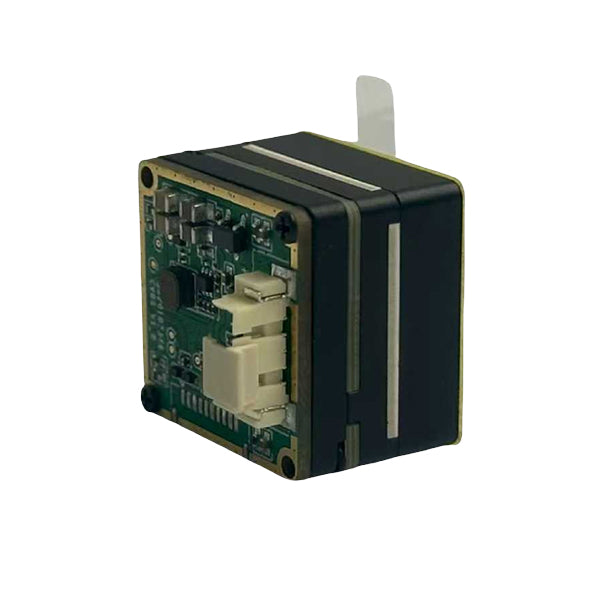

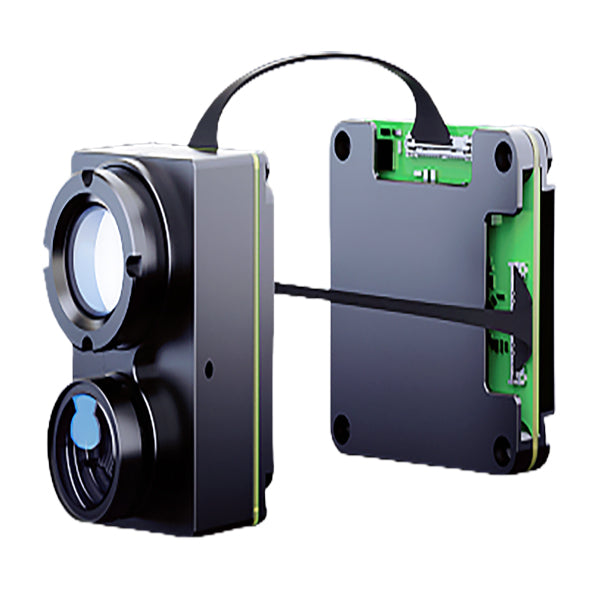

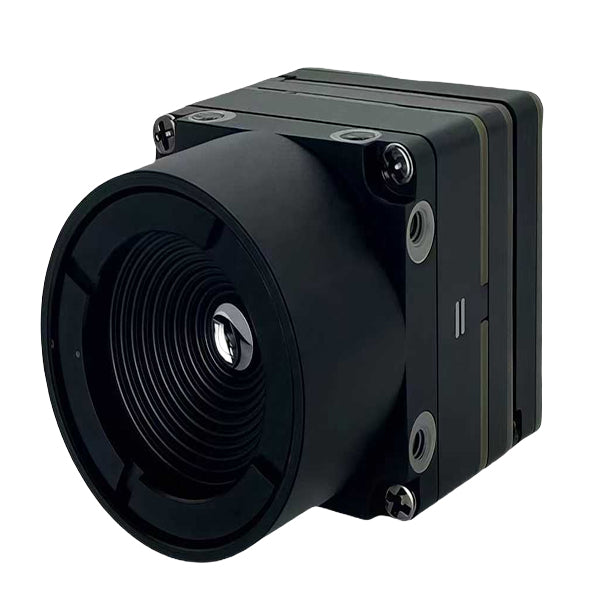

OPTIVIA Infrared Thermal Module ITM256
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| RF SPECIFICATIONS | |
|---|---|
| brightness&contrast adjustment | 0 - 100 |
| color target | White Hot/Black Hot/Multiple Pseudo-color Palettes |
| detection range | 1.1km,The above detection, recognition, and identification ranges are estimated against pedestrian targets (1.8×0.5×0.3m) per Johnson's Criteria. |
| detector | Vanadium Oxide (VOx) Uncooled Infrared Focal Plane Array Detector |
| detector frame rate | 25/50Hz |
| digital video | DVP/BT656/USB2.0/MIPI |
| electronic magnification | 1.0–8.0×Continuous Zoom (0.1 Step Size) |
| field of view | 19.3°×14.5° |
| focal length | 9.1mm |
| f number | 1.0 |
| identification range | 0.17km |
| IFOV | 1.3mrad |
| image mirroring | Vertical/Horizontal/Diagonal Flip |
| lens depth of field (DoF) | 1.73m - ∞ |
| non-uniformity correction NUC | Shutter Calibration/Shutterless Algorithm Calibration |
| pixel size | 12μm |
| recognition range | 0.25km |

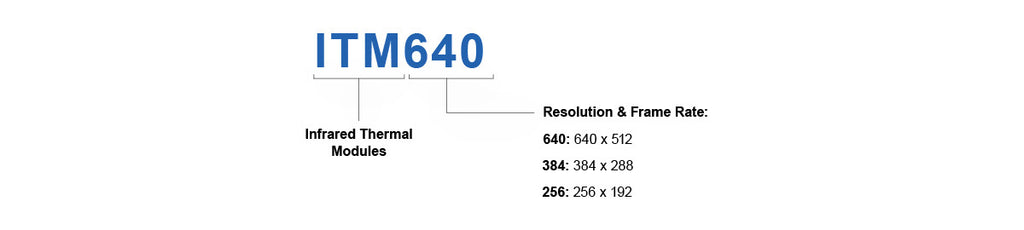

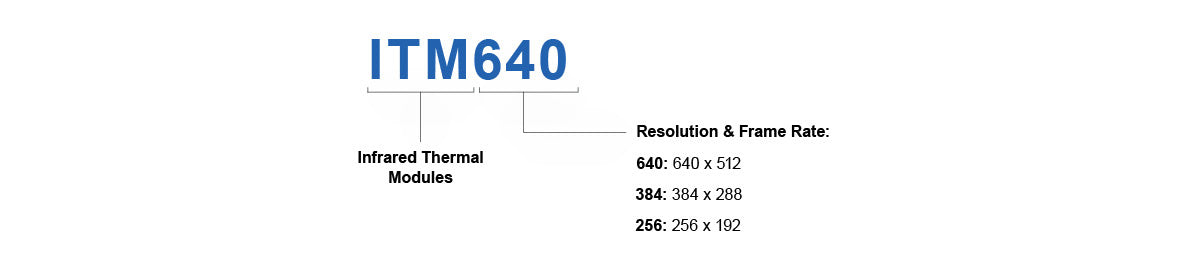

| resolution and frame rate | 256×192 |
| thermal sensitivity NETD | ≤40mK@25℃,F#1.0,25Hz |
| thermal time constant | <12ms |
| wavelength | 8μm - 14μm |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | <0.35W |
| power supply | DC 5V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | UART/I2C/USB2.0 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +80°C |
| temperature storage | -55°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 10.3 mm |
| product length | 21 mm |
| product weight | <0.007 kg |
| product width | 21 mm |
| volume | 21 × 21 × 10.3 mm |
| weight (lens&flange) | 10.5g±5％ |
