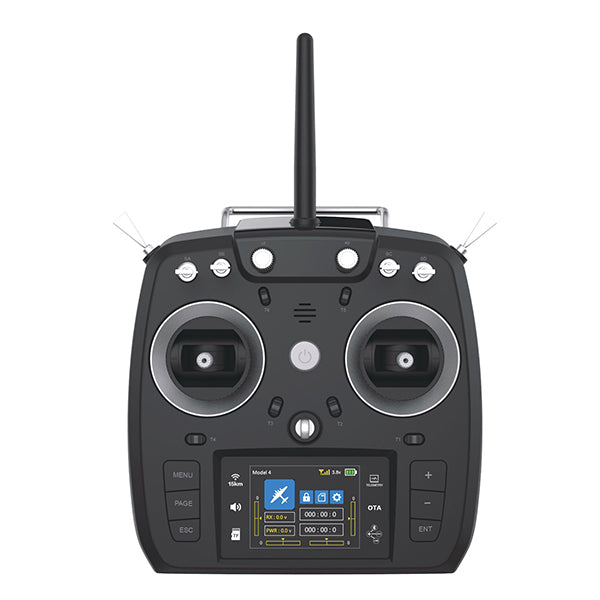

RC Transmitter
  • RC Transmitter

RC150A28

RC Transmitter

Please sign in or create an account to view the price and availability.

Sign In / Create Account
RC Transmitter


KEY SPECIFICATIONS
transmission range 15 km (Unobstructed, free of interference)
ELECTRICAL SPECIFICATIONS
ground unit charging time 12 hours
INTERFACE SPECIFICATIONS
compatible battery 2 x 18650 Li-on Batteries (22 hours) or 1 x 2S LiPo Battery (XH 2.54 3-pin Port)
compatible model RC Planes, Helicopters, gliders, cars, boats
FR receiver antenna0. gain 2 dBi
FR receiver data port UART
FR receiver height 13 mm
FR receiver length 51.5 mm
FR receiver signal output 16 channels of SBUS; 8 channels of PPM; 8 channels of PWM
FR receiver voltage telemetry range 0 ~ 50 V
FR receiver weight antenna excluded 0.020 kg
FR receiver width 38 mm
FR receiver working temperature -10°C ~ 55°C
FR receiver working voltage 5 ~ 8.4 V
FT mini receiver antenna gain 2 dBi
FT mini receiver data port UART
FT mini receiver height 3mm
FT mini receiver length 24mm
FT mini receiver signal output 16 channels of SBUS; 8 channels of PWM
FT mini receiver volatge telemetry range 0 ~ 26 V
FT mini receiver volatge working temperature -10°C ~ 50°C
FT mini receiver weight antenna excluded 0.0015kg
FT mini receiver width 15mm
FT mini receiver working voltage 5 V
number of communication channels 12 Physical Channels; 16 Communication Channels
product display 2.8-Inch High-Brightness Colorful LCD Display Resolution: 240 x 320
product display language Chinese; English
working current 210 mA
PHYSICAL SPECIFICATIONS
product height 64 mm
product length 191 mm
product weight 0.586 kg
product width 175 mm
