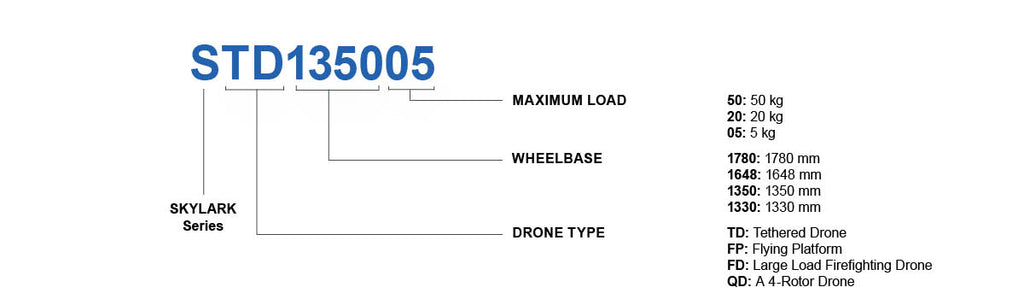

STD135005

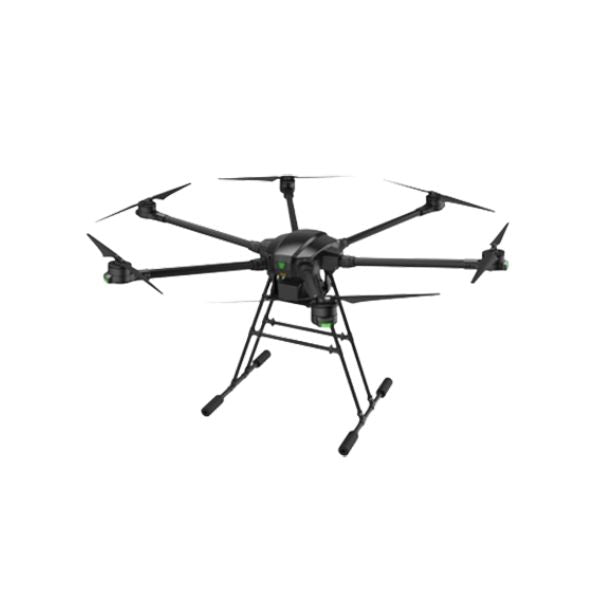

SKYLARK Tethered Drone
Please sign in or create an account to view the price and availability.
Sign In / Create Account
×
Open here
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
AIRCRAFT
| GENERAL SPECS | |
|---|---|
| Product Revision | A |
| control functions | Set the task height one-key take-off, one-key return, one-key emergency stop |
| ground system integration | The use of all-in-one, including automatic take-up system, power supply system, power management system; Simple operation, power one-key start and stop, automatic take-up mode one-key start and stop |
| horizontal flight altitude | 150 m |
| max altitude | 150 m |
| max payload | 5 kg |
| protection function | The input power supply has leakage protection function; The output power supply has overload protection, overvoltage protection and overtemperature protection. For safety, no cutting or modification of the drone battery can be done |
| rated power | 4 kw |
| tethered cable tensile force | 100 kg max |
| winch control knob | Control winch take-up force, adjust the gear according to the size of the aircraft |
| PHYSICAL SPECS | |
| cable length | ≥110 m |
| diagonal wheelbase | ≤1350 mm (six-rotor UAV) |
| power module dimensions | ≤160 × 10 × 42 mm |
| power supply weight | ≤620 g |
| product dimensions height | 290 mm |
| product dimensions length | 460 mm |
| product dimensions width | 400 mm |
| weight | ≤17 kg (including cable) |
REMOTE CONTROLLER
| REMOTE CONTROLLER SPECS | |
|---|---|
| display size | ≥5.5 inches; comes with HD display, electronic fence function, through the flight height and flight distance range parameters to set, set electronic fence to ensure flight safety |
| BATTERY SPECS | |
